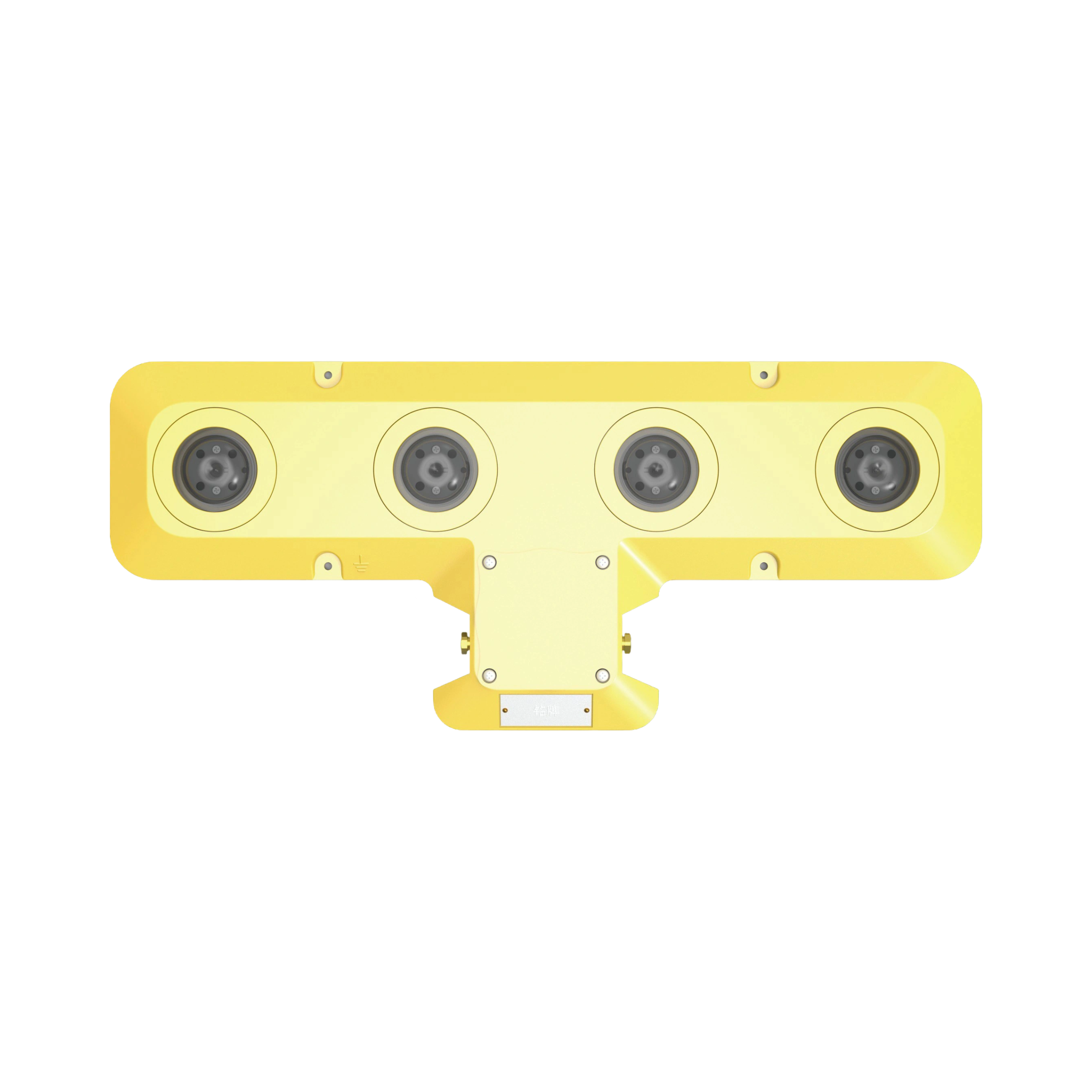

Shell can choose precision casting stainless steel or aviation aluminum material, suitable for marine environment, amber LED light source, life expectancy of up to 100,000 hours, through the control system, the lamps and lanterns issued dimming commands, to achieve the lamps and lanterns standard bright and bright switching, the use of professional optical software design of the light distribution curve, to strictly meet the requirements of the latest version of the CAP437, independent intellectual property rights, multiple patents protected.
Material Stainless Steel + Polycarbonate
Explosion-Proof Marking(气体) Ex db eb mb IIC T6 Gb
Explosion-Proof Marking(Dust) Ex tb IIIC T80℃ Db
Dimension 580 × 245 × 24.6 mm
Degree Of Protection IP66/IP67
Ta -40℃ ~ +60℃
Light Source Led Modules
Service Life ≥100000h
Rated Voltage DC18 ~ 36V
Rated Power 4W / 8W
