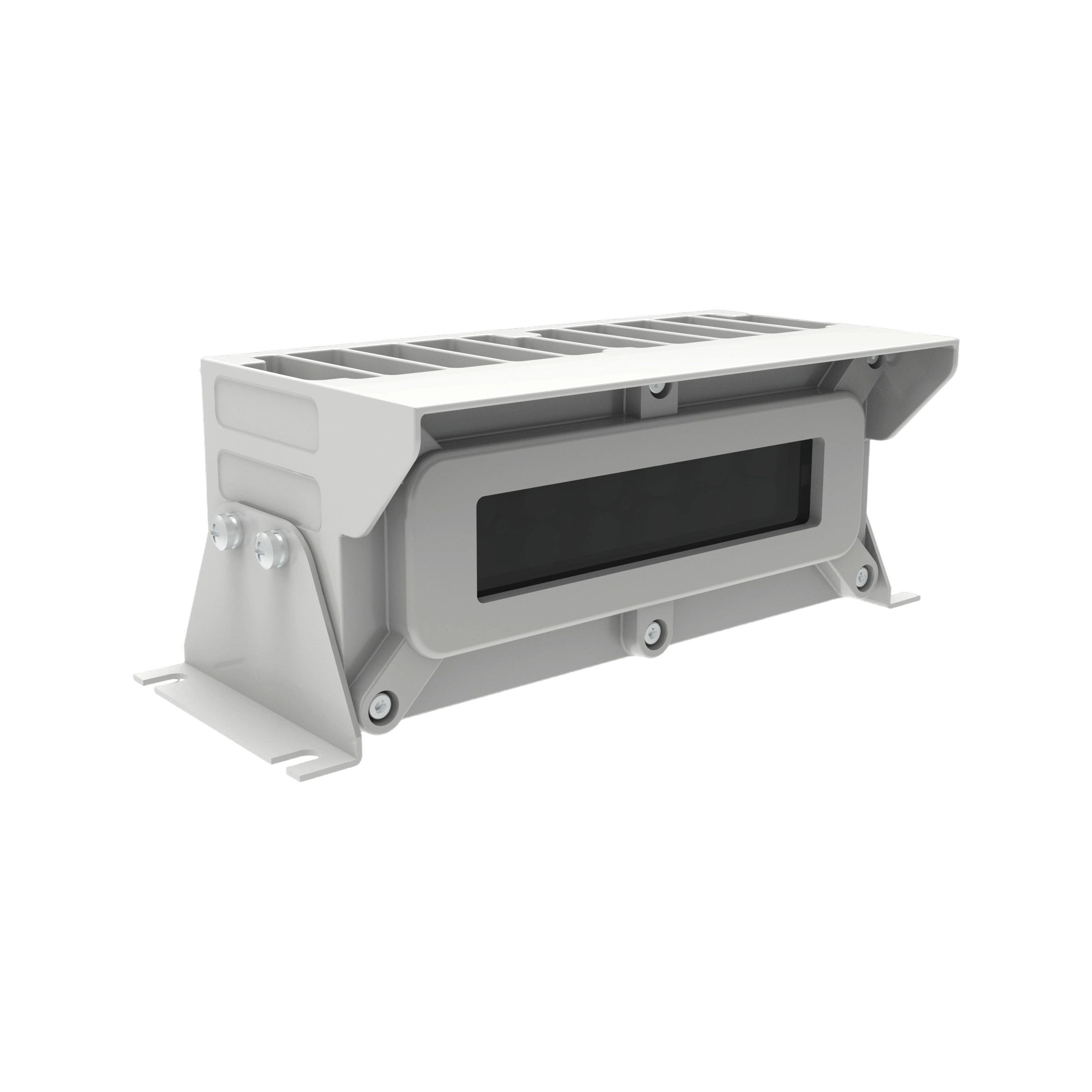

Helideck Explosion-Proof Floodlight YY-HDL-F

Home/Products/Offshore Department/Helideck Lighting System/

Type

YY-HDL-F

Precision casting stainless steel, suitable for marine environments, the beam points vertically to the center of the platform, for landing positioning lighting.

Technical Parameters

Common

Material Stainless Steel + Glass

Explosion-Proof Marking(气体) Ex db eb mb IIC T5/T4 Gb

Explosion-Proof Marking(Dust) Ex tb IIIC T95/130℃ Db

Dimension 298 × 211 × 115 mm

Degree Of Protection IP66 / IP67

Ta -40℃ ~ +60℃

Optical Parameters

Light Source Led Modules

Service Life ≥100000h

Electrical Parameters

Rated Voltage AC100~277V

Rated Power 20W / 30W / 40W

Certification
