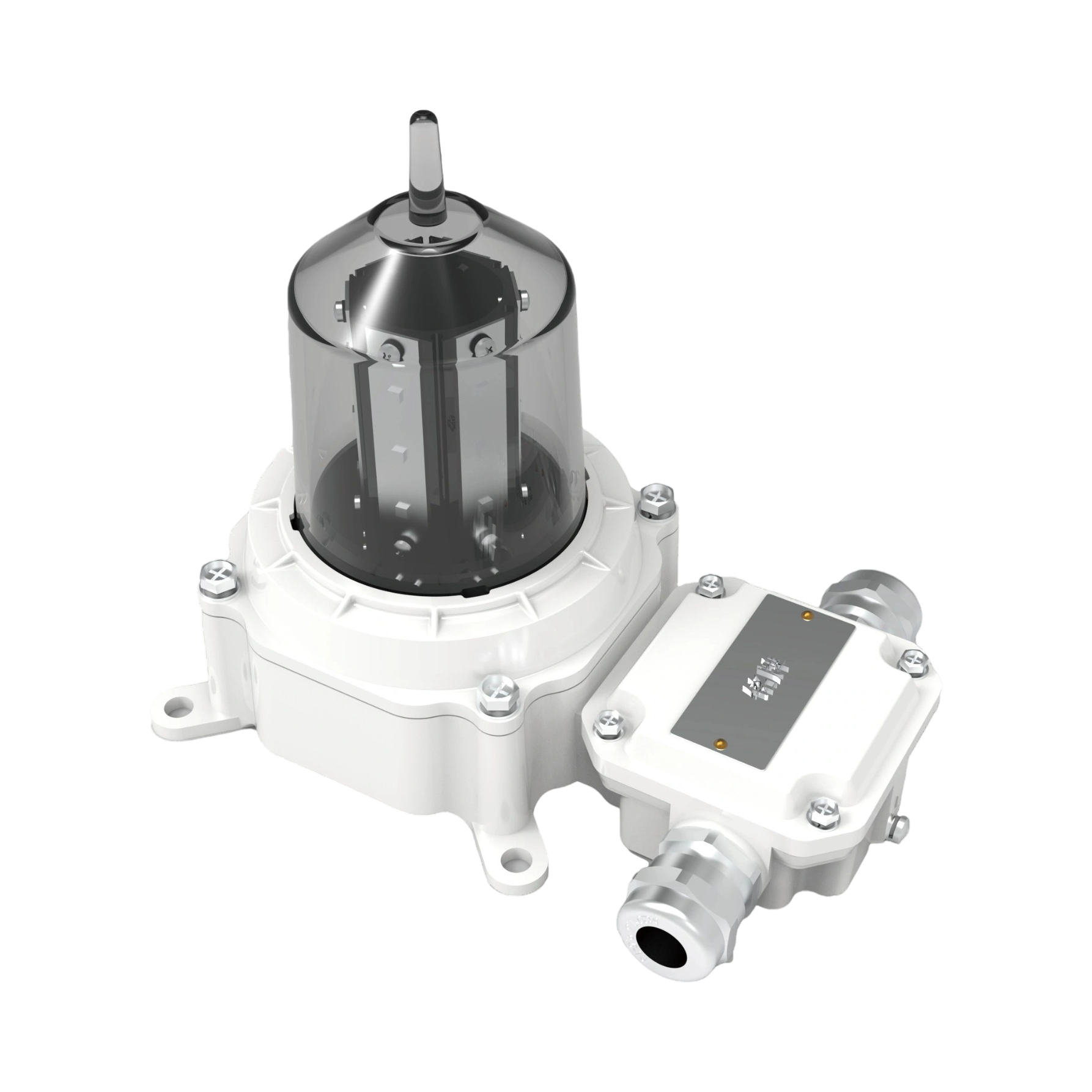

Shell for precision casting stainless steel, suitable for marine environments, UV resistance, salt spray resistance, LED light source, life expectancy of up to 100,000 hours, light source cavity, power supply cavity independent design, installation, wiring is convenient and reliable, the use of professional optical software design of the light distribution curve, to strictly meet the requirements of the latest version of the CAP437, independent intellectual property rights, multiple patents to protect.
Material Stainless Steel + Polycarbonate
Explosion-Proof Marking (Gas) Ex db eb IIC T6 Gb
Explosion-Proof Marking（Dust） Ex tb llIC T80℃ Db
Dimension 218 × 170 × 195 mm
Degree Of Protection IP66 / IP67
Ta -40℃ ~ +60℃
Light Source Led Modules
Service Life ≥100000h
Rated Voltage AC100~250V / DC18~36V
Rated Power 6W / 8W / 10W
