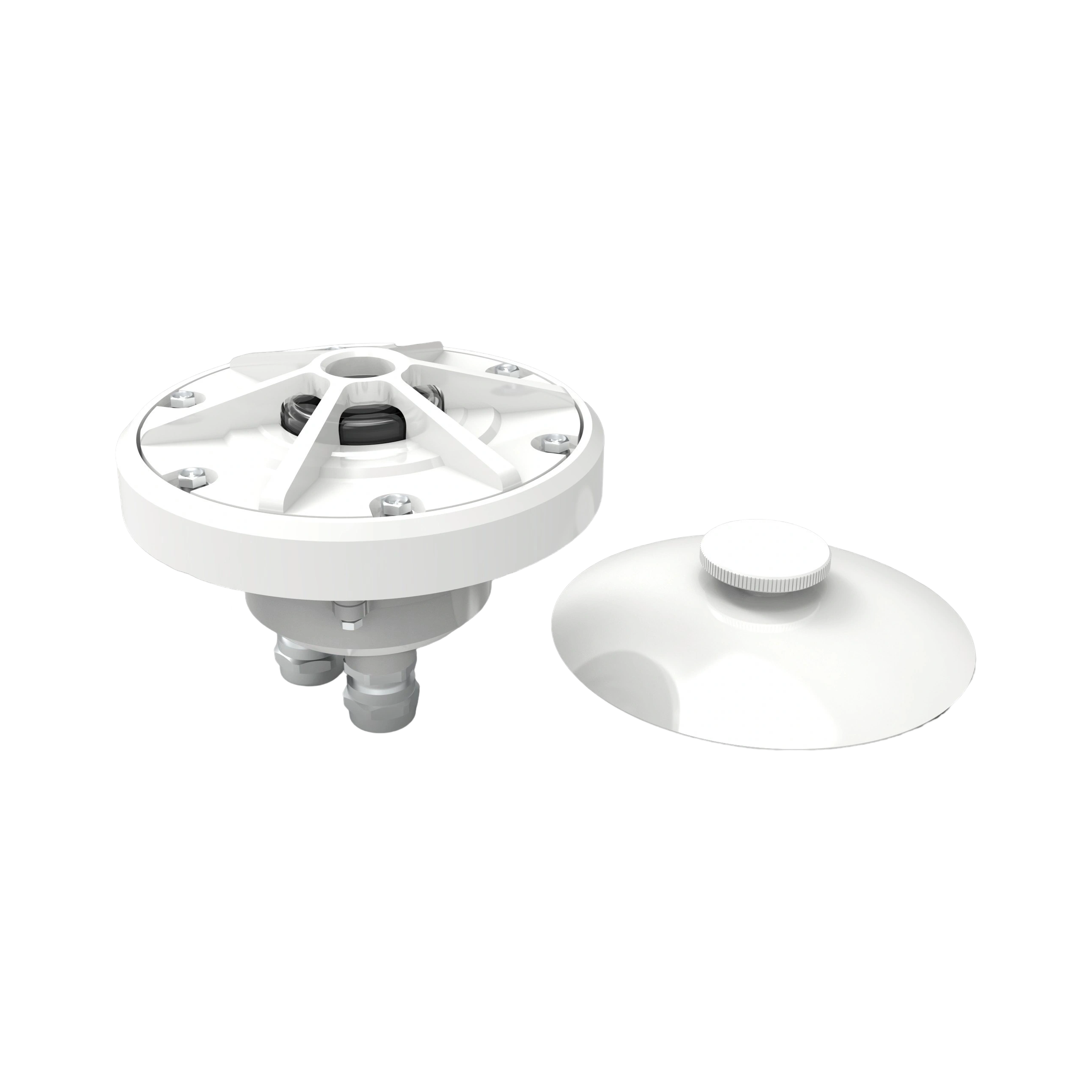

Recessed Explosion-Proof Boundary Light YY-HDL-P-R
Type
  • YY-HDL-P-R

Precision casting stainless steel shell, suitable for marine environments,  UV resistance, salt spray resistance, LED light source, life expectancy of up to 100,000 hours, in order to prevent the helicopter landing and cargo loading and unloading on the lamps and lanterns caused by irreversible damage to the structure of the set of reliable reinforcing ribbing and protective cover, the use of professional optical software design of the distribution curve, to strictly meet the latest version of CAP437 requirements, independent intellectual property rights, multiple patents protected. CAP437 requirements, independent intellectual property rights, multiple patent protection.

Technical Parameters
Common

Material Stainless Steel + Polycarbonate

Explosion-Proof Marking Ex db eb IIC T6 Gb

Dimension φ200 × 170 mm

Degree Of Protection IP66/IP67

Ta -40℃ ~ +60℃

Optical Parameters

Light Source Led Modules

Service Life ≥100000h

Electrical Parameters

Rated Voltage AC100~240V / DC18~36V

Rated Power 8W

Certification
