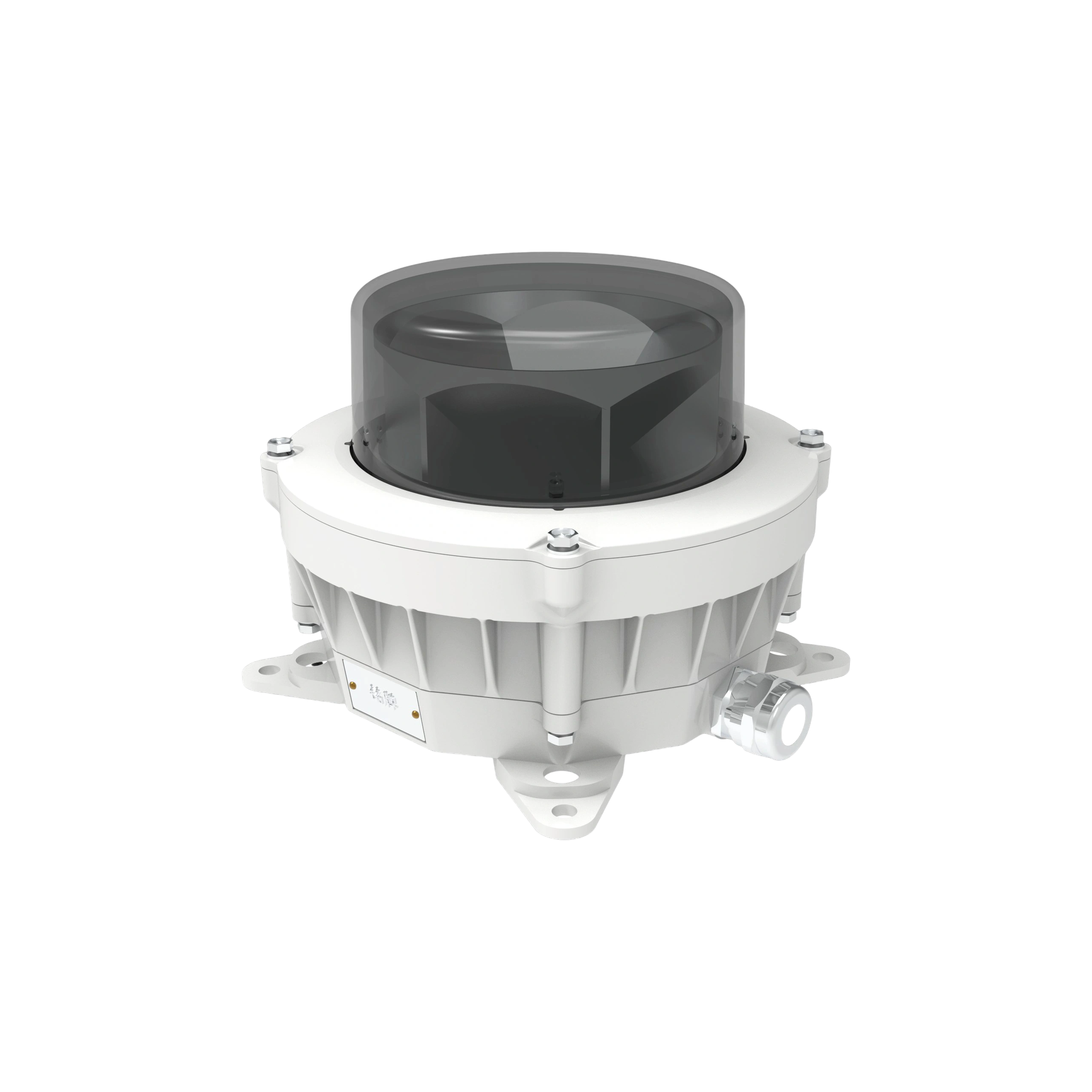

Explosion-Proof Helideck Status Light YY-HDL-S
Type
  • YY-HDL-S

Warns of the presence of conditions on the platform that may be hazardous to the helicopter or persons on board, mounted on or near the platform.

Technical Parameters
Common

Material Stainless Steel + Polycarbonate

Explosion-Proof Marking (Gas) Ex db IIC T6 Gb

Explosion-Proof Marking（Dust） Ex tb llIC T80℃ Db

Dimension φ260 × 185 mm

Degree Of Protection IP66

Ta -40℃ ~ +60℃

Optical Parameters

Light Source Led Modules

Service Life ≥100000h

Electrical Parameters

Rated Voltage AC100~250V

Rated Power 60W

Certification
