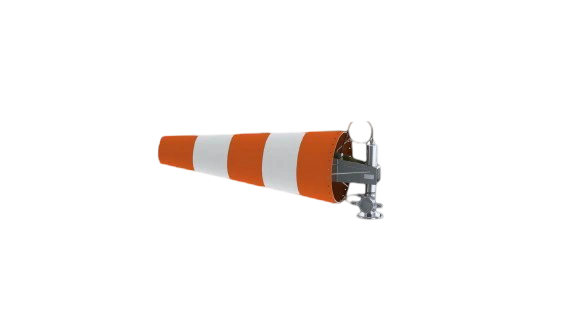

Explosion-Proof Illuminated Windsock YY-HDL-W

Home/Products/Offshore Department/Helideck Lighting System/

Type

YY-HDL-W

The lamp is made of 316L stainless steel as a whole and is mounted at a higher position on the platform, rotating with the wind and providing a clear indication of the wind direction both during the day and at night.

Technical Parameters

Common

Material Stainless Steel + Glass

Explosion-Proof Marking (Gas) Ex db IIC T6 Gb

Explosion-Proof Marking（Dust） Ex tb IIIC T80℃ Db

Dimension φ446 × 1200 mm

Degree Of Protection IP66

Ta -40℃ ~ +55℃

Optical Parameters

Light Source Led Modules

Service Life ≥100000h

Electrical Parameters

Rated Voltage AC100~250V / DC18~36V

Rated Power 9W

Certification
