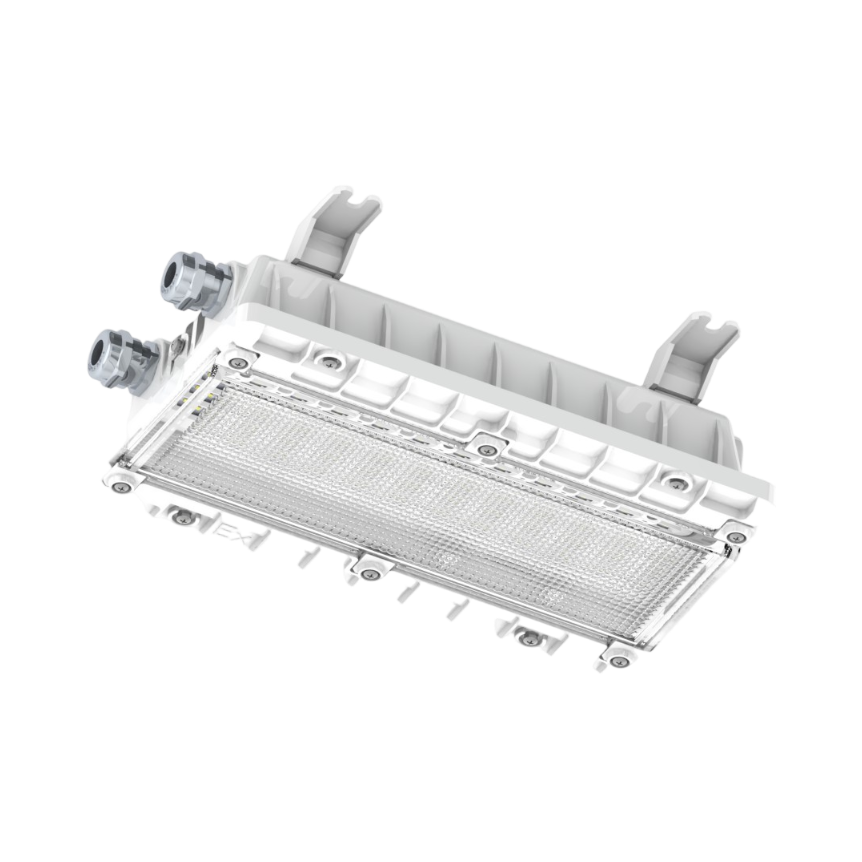

Explosion-proof LED canopy light is a lighting fixture designed for flammable and explosive hazardous places, adopting high-quality LED light source and explosion-proof structure, featuring high efficiency and energy-saving, safety and reliability, long service life, etc. This light is suitable for all kinds of ships with explosion-proof requirements, oil mining platforms, chemical industry and places with explosive gas 1 or 2 zones. This lamp is suitable for all kinds of ships with explosion-proof requirements, oil mining platform, chemical industry and with explosive gas 1 or 2 area lighting, this lamp can be safely and reliably used in explosive mixture of substances IIA, IIB, IIC explosive air mixture of substances in the place. Optional dimming, emergency function and explosion-proof power-off switch.
Material Aluminum Alloy + Polycarbonate
Explosion-Proof Marking (Gas) Ex e mb IIC T6/T5 Gb
Explosion-Proof Marking（Dust） Ex tD A21 IP66 T80/95℃
Dimension 330 × 220 × 106 mm
Degree Of Protection IP66
Ta -40℃ ~ +50℃
Light Source Led Modules
Service Life ≥50000h
Luminous Flux 2200 lm
Rated Voltage AC100V ~ AC277V
Rated Power 20W
Material Aluminum Alloy + Polycarbonate
Explosion-Proof Marking (Gas) Ex e mb IIC T5/T4 Gb
Explosion-Proof Marking（Dust） Ex tD A21 IP66 T95/130℃
Dimension 330 × 220 × 106 mm
Degree Of Protection IP66
Ta -40℃ ~ +50℃
Light Source Led Modules
Service Life ≥50000h
Luminous Flux 4400 lm
Rated Voltage AC100V ~ AC277V
Rated Power 40W
