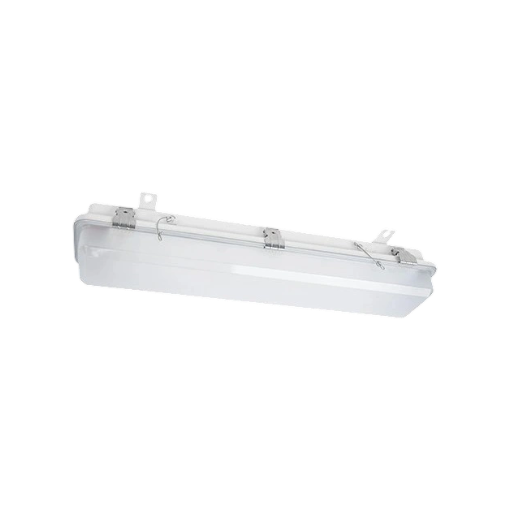

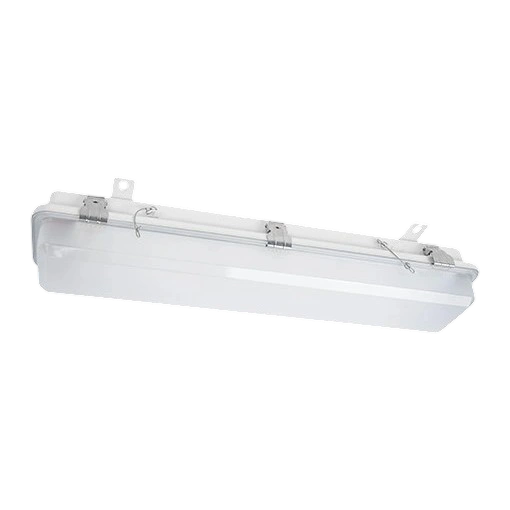

TCYA series cabin roof light adopts steel shell, equipped with LED light source, with high protection level, fearless of salt spray and humid environment, suitable for ship cabin, deck, outside walkway and places with waterproof requirements for lighting, to meet the ambient temperature of -40℃ ~ +50℃ use.
Material Steel + Polycarbonate
Dimension 677 × 190 × 115 mm
Degree Of Protection IP66
Ta -40℃ ~ +50℃
Light Source Led Modules
Service Life ≥50000h
Luminous Flux 2500 lm
Rated Voltage AC110V / AC220V
Rated Power 2 x 10W
Material Steel+ Polycarbonate
Dimension 1324 × 190 × 115 mm
Degree Of Protection IP66
Ta -40℃ ~ +50℃
Light Source Led Modules
Service Life ≥50000h
Luminous Flux 4500 lm
Rated Voltage AC110V / AC220V
Rated Power 2 x 20W
