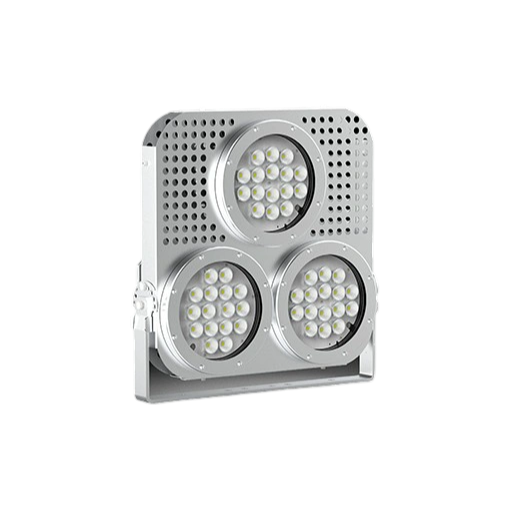

LED explosion-proof floodlight is a lighting fixture designed for flammable and explosive hazardous places, adopting high-quality LED light source and explosion-proof structure, featuring high efficiency and energy saving, safety and reliability, and long service life. This lamp is suitable for all kinds of ships with explosion-proof requirements, oil mining platforms, chemical industry and with explosive gas 1 or 2 area lighting.

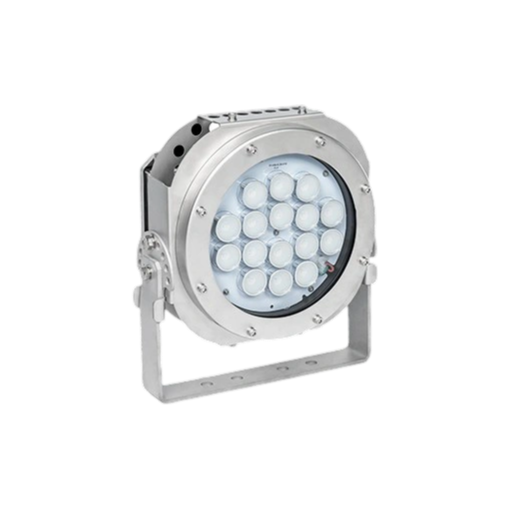

Material Stainless Steel+Glass
Explosion-Proof Marking (Gas) Ex eb mb IIC T4 Gb
Explosion-Proof Marking（Dust） Ex tb IIIC T130°C Db
Dimension 336 x 404 x 158 mm
Degree Of Protection IP66
Ta -40℃ ~ +50℃
Light Source Led Modules
Service Life ≥50000h
Luminous Flux 8600 lm
Rated Voltage AC100V ~ AC277V
Rated Power 100W

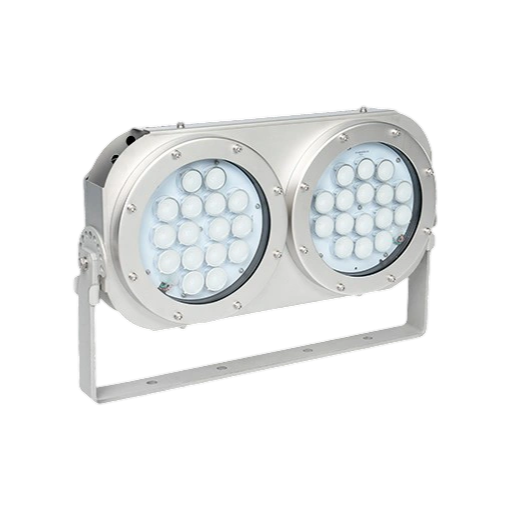

Material Stainless Steel+Glass
Explosion-Proof Marking (Gas) Ex eb mb IIC T4 Gb
Explosion-Proof Marking（Dust） Ex tb IIIC T130°C Db
Dimension 621 x 404 x 158 mm
Degree Of Protection IP66
Ta -40℃ ~ +50℃
Light Source Led Modules
Service Life ≥50000h
Luminous Flux 17200 lm
Rated Voltage AC100V ~ AC277V
Rated Power 200W

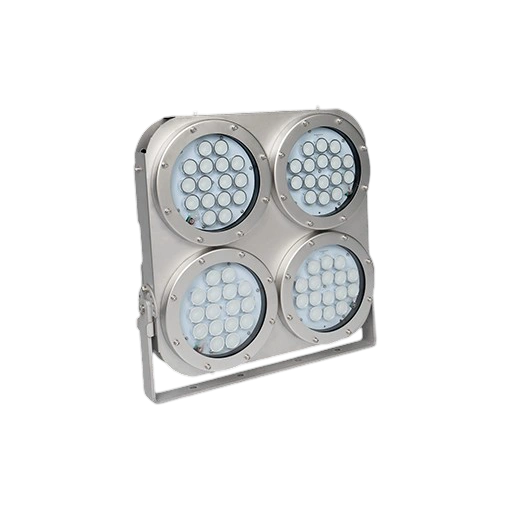

Material Stainless Steel+Glass
Explosion-Proof Marking (Gas) Ex eb mb IIC T4 Gb
Explosion-Proof Marking（Dust） Ex tb IIIC T130°C Db
Dimension 621 x 630.5 x158 mm
Degree Of Protection IP66
Ta -40℃ ~ +50℃
Light Source Led Modules
Service Life ≥50000h
Luminous Flux 25800 lm
Rated Voltage AC100V ~ AC277V
Rated Power 300W
Material Stainless Steel+Glass
Explosion-Proof Marking (Gas) Ex eb mb IIC T4 Gb
Explosion-Proof Marking（Dust） Ex tb IIIC T130°C Db
Dimension 621 x 630.5 x 158 mm
Degree Of Protection IP66
Ta -40℃ ~ +50℃
Light Source Led Modules
Service Life ≥50000h
Luminous Flux 34400 lm
Rated Voltage AC100V ~ AC277V
Rated Power 400W
