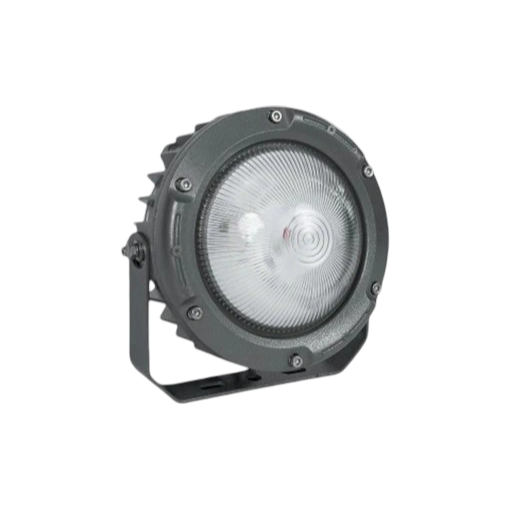

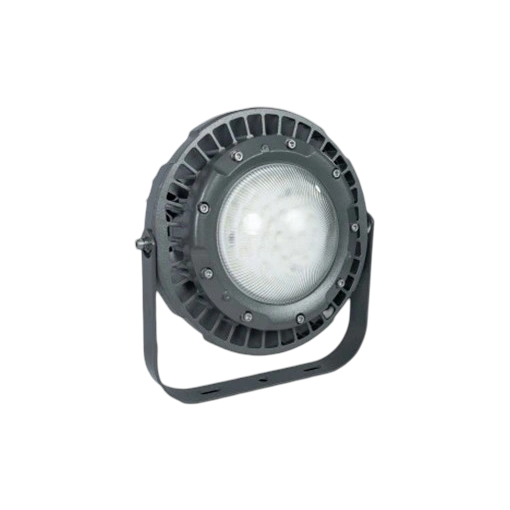

LED explosion-proof lamp is a lighting fixture designed for flammable and explosive hazardous places, adopting high-quality LED light source and explosion-proof structure, featuring high efficiency and energy saving, safety and reliability, and long service life. This lamp is suitable for all kinds of explosion-proof requirements of ships, oil mining platform, chemical industry and with explosive gas 1 or 2 area lighting, this lamp can be safely and reliably used in explosive mixture of substances IIA, IIB, IIC explosive air mixture of substances in the place.
Material Aluminum Alloy+Tempered Glass
Explosion-Proof Marking (Gas) Ex db lIC T6 Gb
Explosion-Proof Marking（Dust） Ex tb lIIC T80℃ Db
Dimension Φ198 × 208 mm
Weight 2.5 kg
Degree Of Protection IP66
Ta -20℃ ~ +45℃
Light Source Led Modules
Color Temperature 4000K / 6000K
Luminous Flux 18000 lm
CRI 80
Service Life ≥50000h
Rated Voltage AC/DC220V
Rated Power 15W
Material Aluminum Alloy+Tempered Glass
Explosion-Proof Marking (Gas) Ex db lIB T6 Gb
Explosion-Proof Marking（Dust） Ex tb lIIC T80℃ Db
Dimension Φ198 × 208 mm
Weight 2.5 kg
Degree Of Protection IP66
Ta -20℃ ~ +45℃
Light Source Led Modules
Color Temperature 4000K / 6000K
Luminous Flux 18000 lm
CRI 80
Service Life ≥50000h
Rated Voltage AC/DC220V
Rated Power 15W
Material Aluminum Alloy+Tempered Glass
Explosion-Proof Marking (Gas) Ex db lIC T6 Gb
Explosion-Proof Marking（Dust） Ex tb lIIC T80℃ Db
Dimension Φ253 × 222 mm
Weight 4.8 kg
Degree Of Protection IP66
Ta -20℃ ~ +45℃
Light Source Led Modules
Color Temperature 4000K / 6000K
Luminous Flux 18000 lm
CRI 80
Service Life ≥50000h
Rated Voltage AC/DC220V
Rated Power 60W
Material Aluminum Alloy+Tempered Glass
Explosion-Proof Marking (Gas) Ex db lIB T6 Gb
Explosion-Proof Marking（Dust） Ex tb lIIC T80℃ Db
Dimension Φ253 × 222 mm
Weight 4.8 kg
Degree Of Protection IP66
Ta -20℃ ~ +45℃
Light Source Led Modules
Color Temperature 4000K / 6000K
Luminous Flux 18000 lm
CRI 80
Service Life ≥50000h
Rated Voltage AC/DC220V
Rated Power 60W
Material Aluminum Alloy+Tempered Glass
Explosion-Proof Marking (Gas) Ex db lIC T5 Gb
Explosion-Proof Marking（Dust） Ex tb lIIC T95℃ Db
Dimension Φ323 × 291 mm
Weight 5.9 kg
Degree Of Protection IP66
Ta -20℃ ~ +45℃
Light Source Led Modules
Color Temperature 4000K / 6000K
Luminous Flux 18000 lm
CRI 80
Service Life ≥50000h
Rated Voltage AC/DC220V
Rated Power 150W
