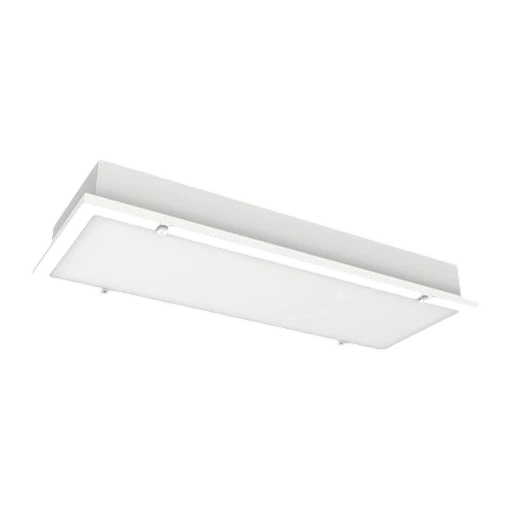

TPYA series LED canopy light with screws design scheme makes the installation more solid. Adopting high efficiency LED chips, adapted to ship's electric system, stable and durable. Specially designed for marine environment, suitable for dry cabins of ships, such as crew and passengers' living compartments, lounges, dining rooms, pilothouses.
Material Steel+PMMA
Dimension 674 × 254 × 85 mm
Weight 4.6 kg
Degree Of Protection IP22 / IP44
Ta -20℃ ~ +55℃
Light Source Led Tube / Led Modules
Color Temperature 3000K ~ 6500K
Luminous Flux 1400 lm
CRI 80
Service Life ≥30000h
Rated Voltage AC110V / AC220V
Rated Power 2 x 10W
Material Steel+PMMA
Dimension 1280 × 254 × 85 mm
Weight 6.4 kg
Degree Of Protection IP22 / IP44
Ta -20℃ ~ +55℃
Light Source Led Tube / Led Modules
Color Temperature 3000K ~ 6500K
Luminous Flux 2600 lm
CRI 80
Service Life ≥30000h
Rated Voltage AC110V / AC220V
Rated Power 2 x 20W
Material Steel+PMMA
Dimension 674 × 254 × 85 mm
Weight 4.6 kg
Degree Of Protection IP22 / IP44
Ta -20℃ ~ +55℃
Light Source Led Tube / Led Modules
Color Temperature 3000K ~ 6500K
Luminous Flux 2200 lm
CRI 80
Service Life ≥30000h
Rated Voltage AC110V / AC220V
Rated Power 2 x 10W
Material Steel+PMMA
Dimension 1280 × 254 × 85 mm
Weight 8.2 kg
Degree Of Protection IP22 / IP44
Ta -20℃ ~ +55℃
Light Source Led Tube / Led Modules
Color Temperature 3000K ~ 6500K
Luminous Flux 4400 lm
CRI 80
Service Life ≥30000h
Rated Voltage AC110V / AC220V
Rated Power 2 x 20W
