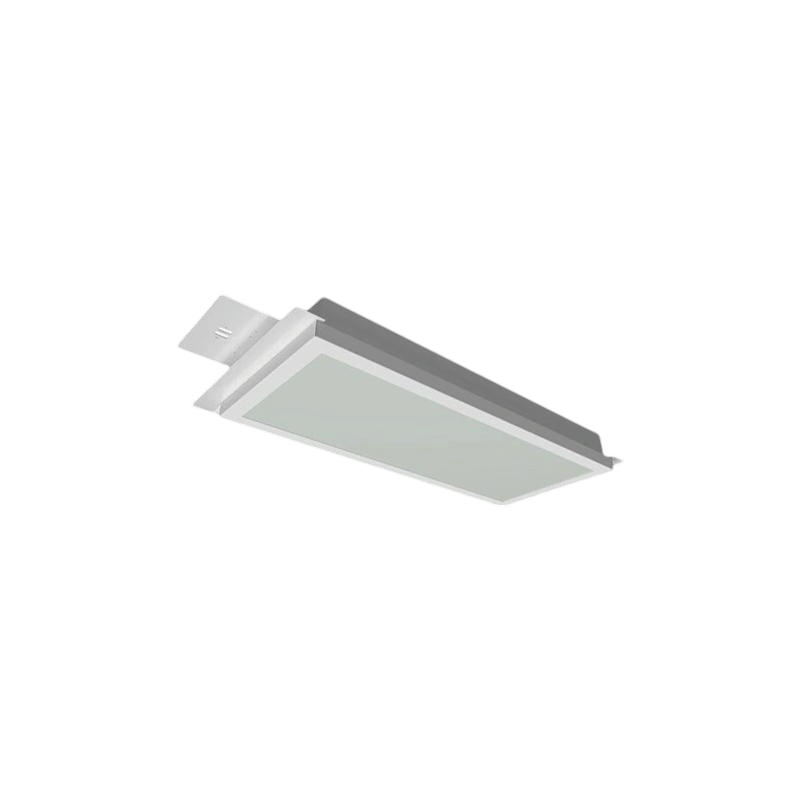

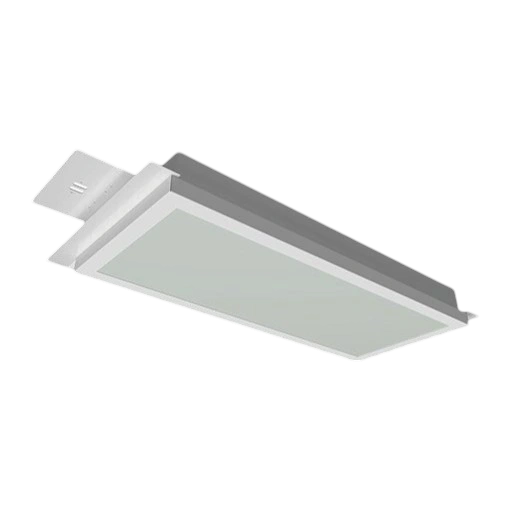

TPYD series LED canopy light, its unique D-type ceiling mounting method, to meet the needs of a variety of installations, using high-efficiency LED chips, adapted to the ship's power system, stable and durable. Specially designed for marine environment, suitable for cabin, deck, corridor, cabin and other areas.
Material Steel+PMMA
Dimension 858 × 320 × 76 mm
Weight 4.6 kg
Degree Of Protection IP22
Ta -20℃ ~ +55℃
Light Source Led Tube / Led Modules
Color Temperature 3000K ~ 6500K
Luminous Flux 1400 lm
CRI 80
Service Life ≥30000h
Rated Voltage AC110V / AC220V
Rated Power 2 x 10W
Material Steel+PMMA
Dimension 1392 × 320 × 76 mm
Weight 6.4 kg
Degree Of Protection IP22
Ta -20℃ ~ +55℃
Light Source Led Tube / Led Modules
Color Temperature 3000K ~ 6500K
Luminous Flux 2600 lm
CRI 80
Service Life ≥30000h
Rated Voltage AC110V / AC220V
Rated Power 2 x 20W
Material Steel+PMMA
Dimension 858 × 320 × 76 mm
Weight 4.6 kg
Degree Of Protection IP22
Ta -20℃ ~ +55℃
Light Source Led Tube / Led Modules
Color Temperature 3000K ~ 6500K
Luminous Flux 2200 lm
CRI 80
Service Life ≥30000h
Rated Voltage AC110V / AC220V
Rated Power 2 x 10W
Material Steel+PMMA
Dimension 1468 × 320 × 76 mm
Weight 8.2 kg
Degree Of Protection IP22
Ta -20℃ ~ +55℃
Light Source Led Tube / Led Modules
Color Temperature 3000K ~ 6500K
Luminous Flux 4400 lm
CRI 80
Service Life ≥30000h
Rated Voltage AC110V / AC220V
Rated Power 2 x 20W
