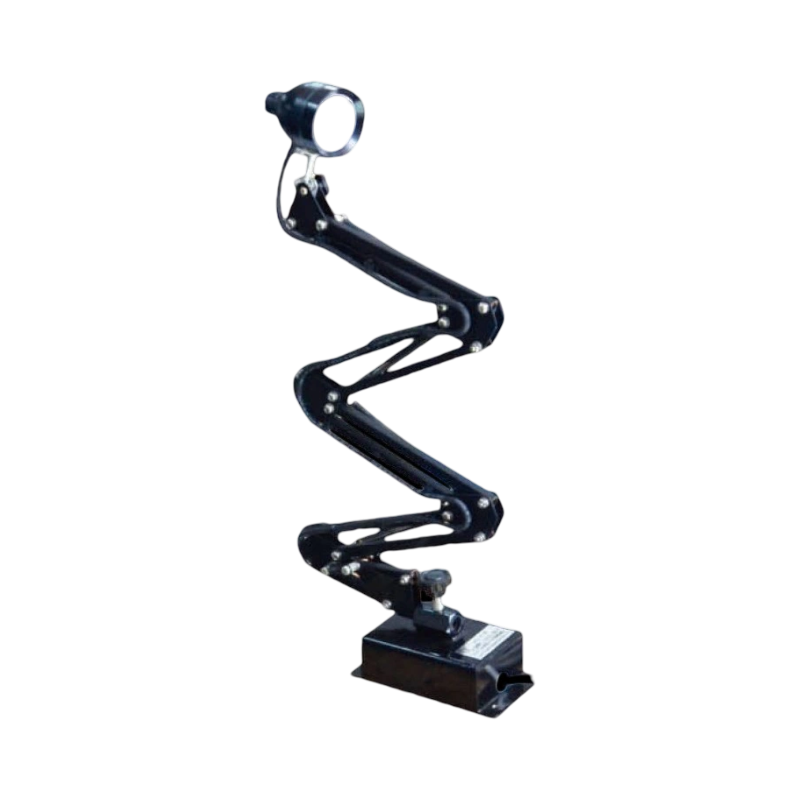

LED Chart Light CHT6ML

Type

CHT6ML

Suitable for lighting in front of the chart table in the ship's pilothouse, the lamps can be adjusted up and down, left and right, front and rear.

Technical Parameters

Common

Material Steel

Dimension 78 × 250 × 300 mm

Weight 2 kg

Degree Of Protection IP44

Ta -20℃ ~ +45℃

Optical Parameters

Light Source Led Modules

Color Temperature 3000K ~ 6500K

CRI 80

Service Life ≥30000h

Electrical Parameters

Rated Voltage 24V ~ 220V

Rated Power 5W

Certification
