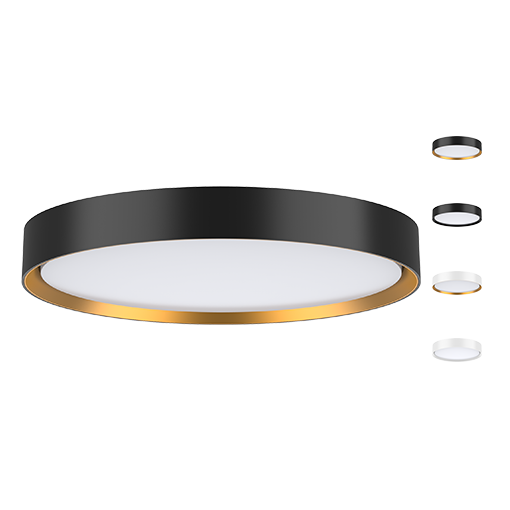

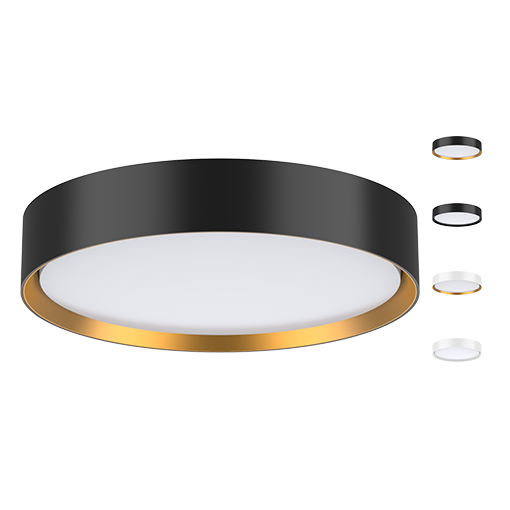

AL166 is a fashionable LED ceiling light, the appearance is simple and fashionable, the light is uniform and soft.
Material Aluminum Alloy+Polycarbonate
Dimension φ301× 58 mm
Led Driver Built-In
Degree Of Protection IP20 / IP44
Ta -20℃ ~ +45℃
Weight 1.3 kg
Light Source LED SMD
Color Temperature 3000K / 4000K / 5700K
Luminous Flux 1500 lm
Luminous Efficacy 85 lm/W
CRI 80
Beam Angle 120°
Rated Voltage AC220 - 240V
Rated Power 18W
Dimming Option Non-Dim / Triac /DALI
Material Aluminum Alloy+Polycarbonate
Dimension φ301× 58 mm
Led Driver Built-In
Degree Of Protection IP20 / IP44
Ta -20℃ ~ +45℃
Weight 1.3 kg
Light Source LED SMD
Color Temperature 3000K / 4000K / 5700K
Luminous Flux 1900 lm
Luminous Efficacy 85 lm/W
CRI 80
Beam Angle 120°
Rated Voltage AC220 - 240V
Rated Power 24W
Dimming Option Non-Dim / Triac /DALI
Material Aluminum Alloy+Polycarbonate
Dimension φ422× 58 mm
Led Driver Built-In
Degree Of Protection IP20 / IP44
Ta -20℃ ~ +45℃
Weight 2.2 kg
Light Source LED SMD
Color Temperature 3000K / 4000K / 5700K
Luminous Flux 2700 lm
Luminous Efficacy 85 lm/W
CRI 80
Beam Angle 120°
Rated Voltage AC220 - 240V
Rated Power 30W
Dimming Option Non-Dim / Triac /DALI
