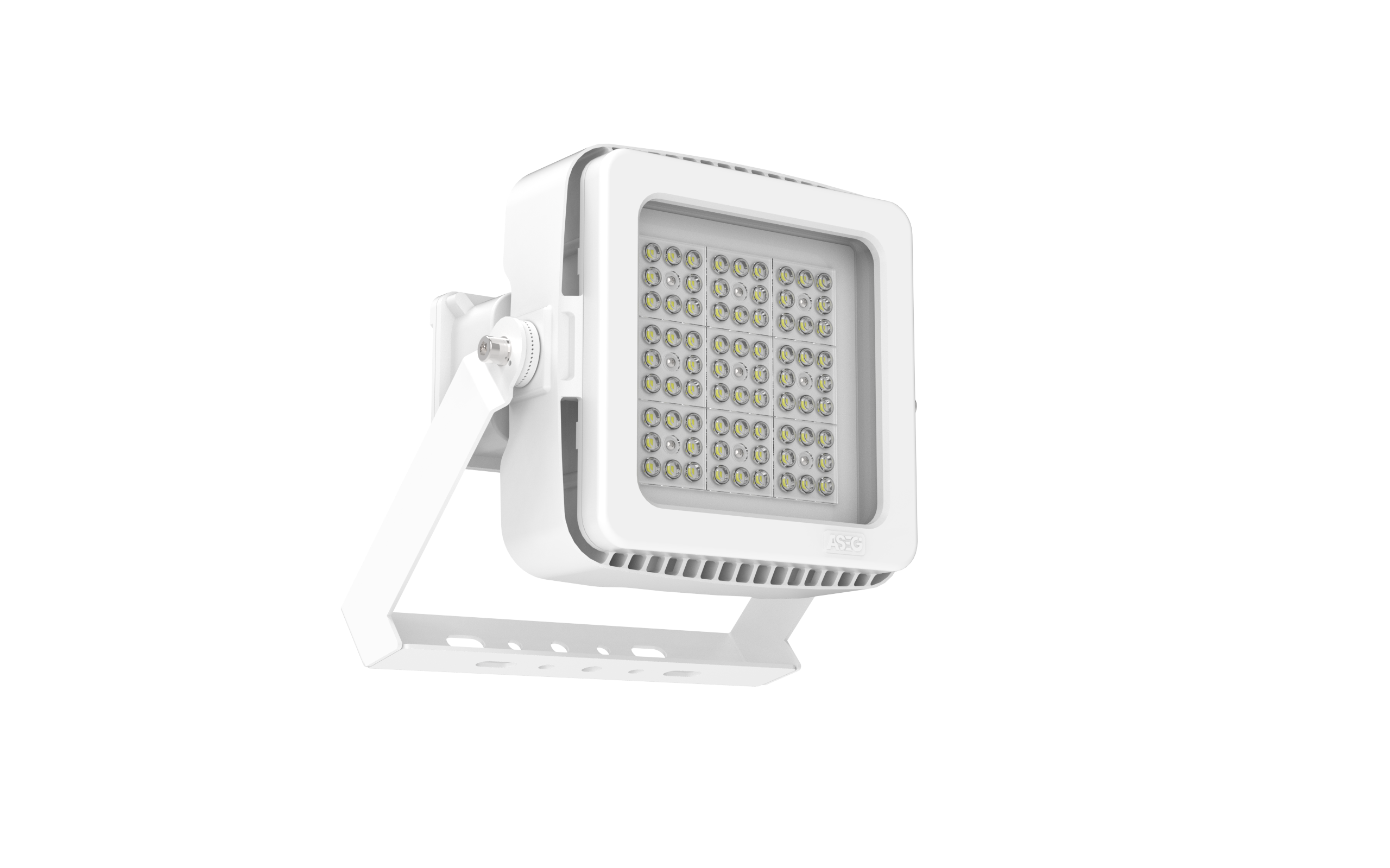

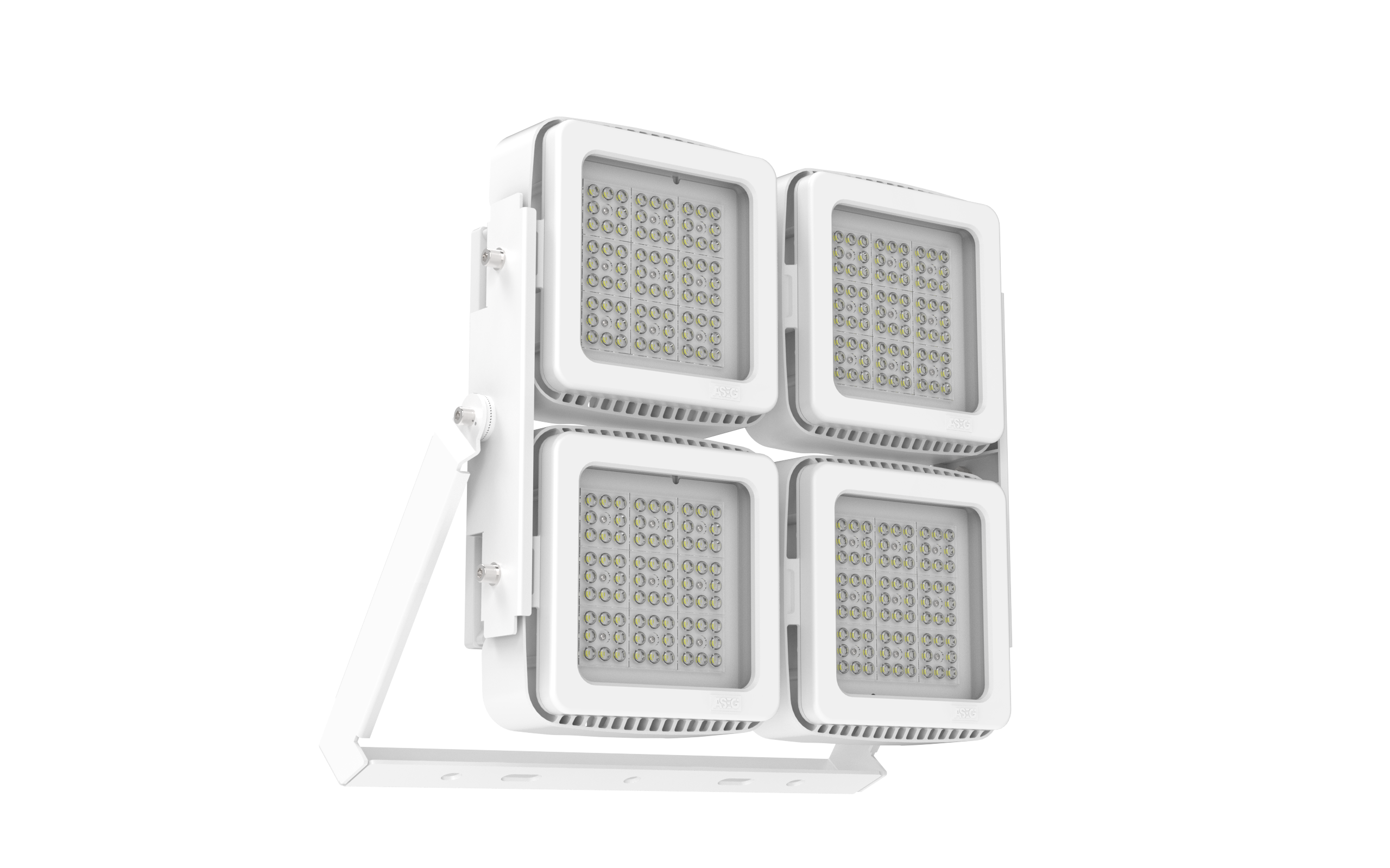

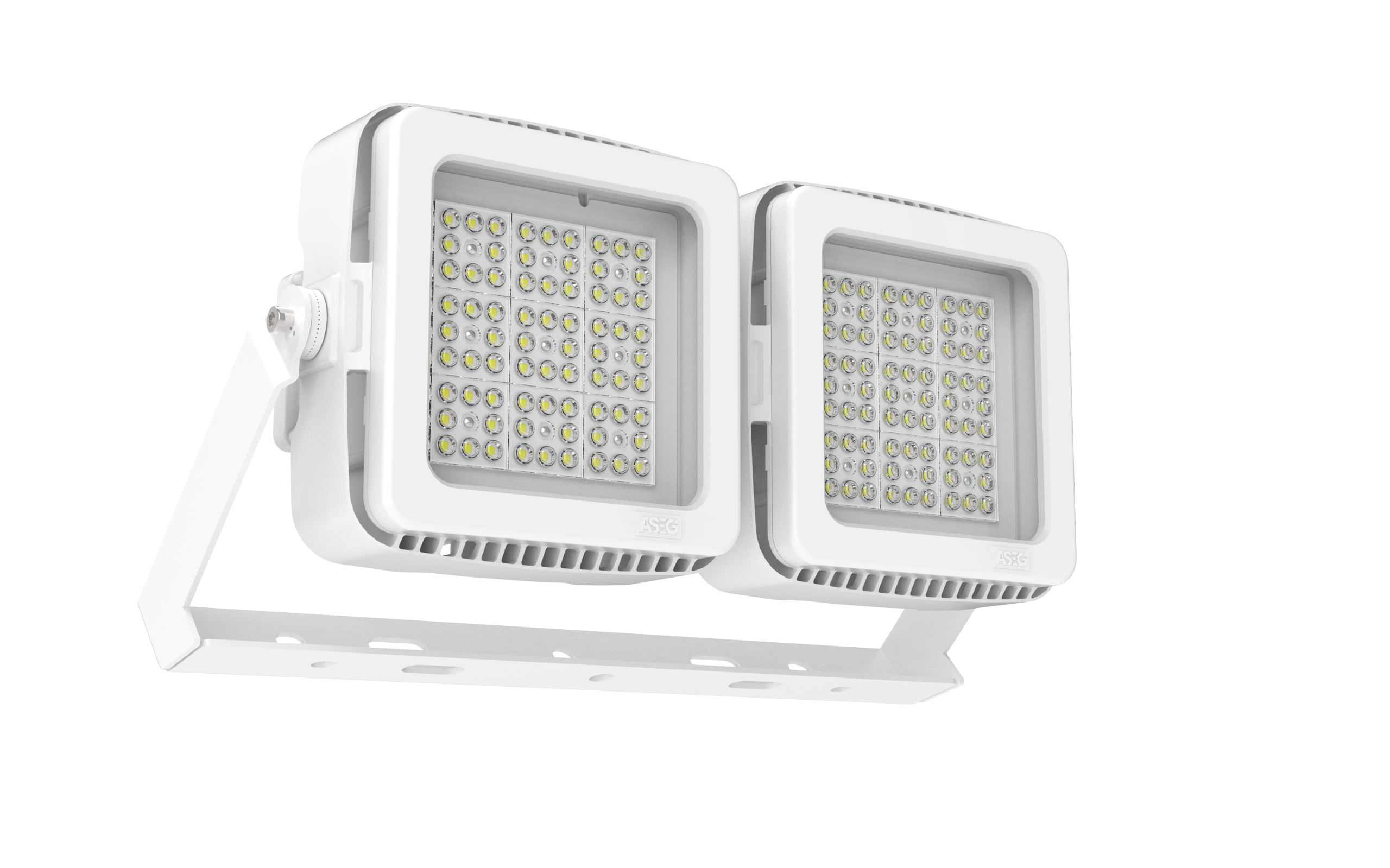

LED Floodlight is a high-performance LED floodlight designed for ships, offshore work platforms, port terminals and other scenes. The product adopts high brightness LED light source and high efficiency optical system, which can provide uniform and high brightness lighting effect in various harsh environments to meet the lighting needs of large area, and at the same time, it is characterized by high energy efficiency, long life and high reliability.
Material Cast Aluminum Alloy+Tempered Glass
Dimension 325.4 x 163.5 x 370 mm
Weight 8.35 kg
Degree Of Protection IP66/IP67
Ta -40℃ ~ +55℃
Light Source Led Modules
Color Temperature 3000K/4000K/5000K/5700K/6500K
Luminous Flux 22500 lm
Service Life ≥50000h
Rated Voltage AC110 ~ 277V
Rated Power 150W
Material Cast Aluminum Alloy+Tempered Glass
Dimension 325.4 x 163.5 x 370 mm
Weight 8.35 kg
Degree Of Protection IP66/IP67
Ta -40℃ ~ +55℃
Light Source Led Modules
Color Temperature 3000K/4000K/5000K/5700K/6500K
Luminous Flux 30000 lm
Service Life ≥50000h
Rated Voltage AC110 ~ 277V
Rated Power 200W
Material Cast Aluminum Alloy+Tempered Glass
Dimension 594 x 163.5 x 370 mm
Weight 13kg
Degree Of Protection IP66/IP67
Ta -40℃ ~ +55℃
Light Source Led Modules
Color Temperature 3000K/4000K/5000K/5700K/6500K
Luminous Flux 45000lm
Service Life ≥50000h
Rated Voltage AC110 ~ 277V
Rated Power 300W
Material Cast Aluminum Alloy+Tempered Glass
Dimension 594 x 163.5 x 370 mm
Weight 13kg
Degree Of Protection IP66/IP67
Ta -40℃ ~ +55℃
Light Source Led Modules
Color Temperature 3000K/4000K/5000K/5700K/6500K
Luminous Flux 60000 lm
Service Life ≥50000h
Rated Voltage AC110 ~ 277V
Rated Power 400W
Material Cast Aluminum Alloy+Tempered Glass
Dimension 605.2 x 163.5 x 645 mm
Weight 27kg
Degree Of Protection IP66/IP67
Ta -40℃ ~ +55℃
Light Source Led Modules
Color Temperature 3000K/4000K/5000K/5700K/6500K
Luminous Flux 90000 lm
Service Life ≥50000h
Rated Voltage AC110 ~ 277V
Rated Power 600W
Material Cast Aluminum Alloy+Tempered Glass
Dimension 605.2 x 163.5 x 645 mm
Weight 27kg
Degree Of Protection IP66/IP67
Ta -40℃ ~ +55℃
Light Source Led Modules
Color Temperature 3000K/4000K/5000K/5700K/6500K
Luminous Flux 120000 lm
Service Life ≥50000h
Rated Voltage AC110 ~ 277V
Rated Power 800W
