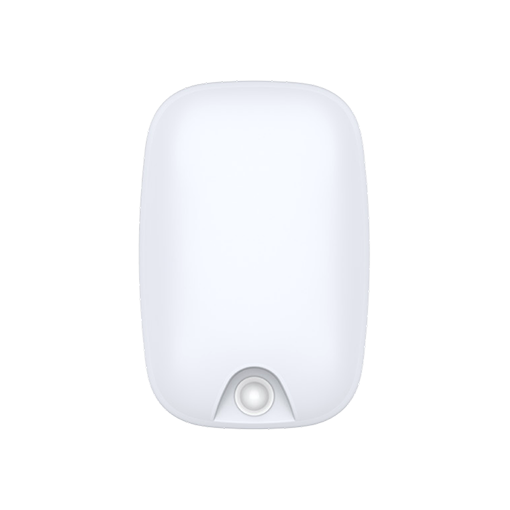

Wall Light WL80

Home/Products/Ship and Marine Department/Wall Light/

Type

WL80-12W

WL80 adopts rimless lamp shade and whole lamp luminous design to provide more three-dimensional lighting effect,adopts SMD light source and PC lamp shade material, ADC12 aluminum lamp body can provide good heat dissipation, IP65 can be used for indoor and outdoor space. besides, for this lamp, you can choose either a manual switch or a motion - sensor switch as an option.

Technical Parameters

Common

Material Aluminum Alloy+Polycarbonate

Dimension 167 × 251 × 80 mm

Led Driver Built-In

Degree Of Protection IP65

Ta -20℃ ~ +45℃

Weight 1.15 kg

Optical Parameters

Light Source LED SMD

Color Temperature 3000K / 4000K / 5000K

Luminous Flux 1200 lm

Luminous Efficacy 100 lm/W

CRI 80

Beam Angle 120°

Electrical Parameters

Rated Voltage AC220 - 240V

Rated Power 12W

Dimming Option Non-Dim / Triac

Certification
