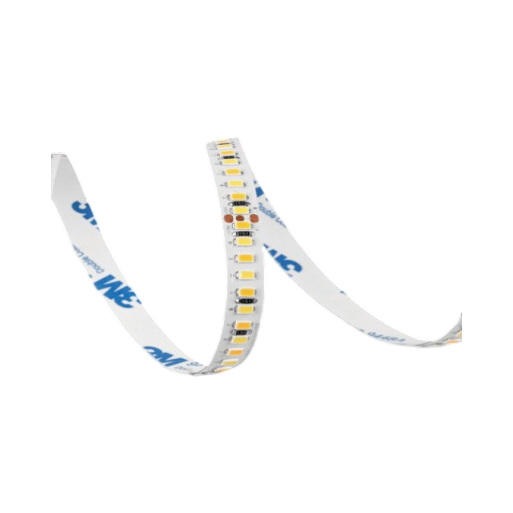

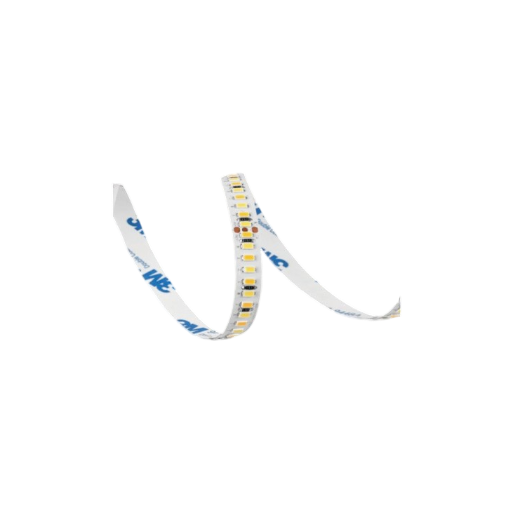

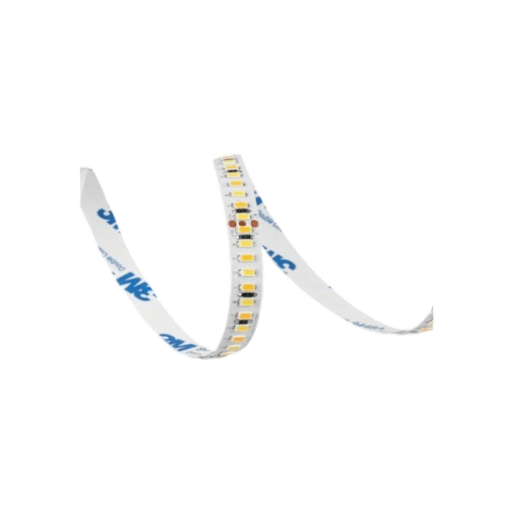

LSA series bare strip light, equipped with SMD light source, can be cut according tothe actual use needs.
Material Copper
Dimension 5 × 1.4 mm
Led Driver Separate
Degree Of Protection IP20
Ta -25℃ ~ +55℃
Weight 0.013 kg/m
Light Source LED SMD
Color Temperature 3000K / 4000K / 5700K / 6500K
Luminous Flux 800 lm/m
Luminous Efficacy 100 lm/W
CRI 80 / 90
Beam Angle 120°
Rated Voltage 24VDC
Rated Power 8W
Dimming Option Non-Dim / Triac / 0-10V / 1-10V / DALI
Bead Density 120 / 140 / 168 / 238 p/m
Max.Shipment Length 10m
Cut Length 0.83 / 2.5 / 5 / 6.25 cm
Material Copper
Dimension 8 × 1.4 mm
Led Driver Separate
Degree Of Protection IP20
Ta -25℃ ~ +55℃
Weight 0.015 kg/m
Light Source LED SMD
Color Temperature 3000K / 4000K / 5700K / 6500K
Luminous Flux 1200 lm/m
Luminous Efficacy 100 lm/W
CRI 80 / 90
Beam Angle 120°
Rated Voltage 24VDC
Rated Power 12W
Dimming Option Non-Dim / Triac / 0-10V / 1-10V / DALI
Bead Density 120 / 140 / 168 / 238 p/m
Max.Shipment Length 10m
Cut Length 0.83 / 2.5 / 5 / 6.25 cm
Material Copper
Dimension 12 × 1.4 mm
Led Driver Separate
Degree Of Protection IP20
Ta -25℃ ~ +55℃
Weight 0.021 kg/m
Light Source LED SMD
Color Temperature 3000K / 4000K / 5700K / 6500K
Luminous Flux 1500 lm/m
Luminous Efficacy 100 lm/W
CRI 80 / 90
Beam Angle 120°
Rated Voltage 24VDC
Rated Power 15W
Dimming Option Non-Dim / Triac / 0-10V / 1-10V / DALI
Bead Density 120 / 140 / 168 / 238 p/m
Max.Shipment Length 10m
Cut Length 0.83 / 2.5 / 5 / 6.25 cm
Material Copper
Dimension 15 × 1.4 mm
Led Driver Separate
Degree Of Protection IP20
Ta -25℃ ~ +55℃
Weight 0.035 kg/m
Light Source LED SMD
Color Temperature 3000K / 4000K / 5700K / 6500K
Luminous Flux 2000 lm/m
Luminous Efficacy 100 lm/W
CRI 80 / 90
Beam Angle 120°
Rated Voltage 24VDC
Rated Power 20W
Dimming Option Non-Dim / Triac / 0-10V / 1-10V / DALI
Bead Density 120 / 140 / 168 / 238 p/m
Max.Shipment Length 10m
Cut Length 0.83 / 2.5 / 5 / 6.25 cm
