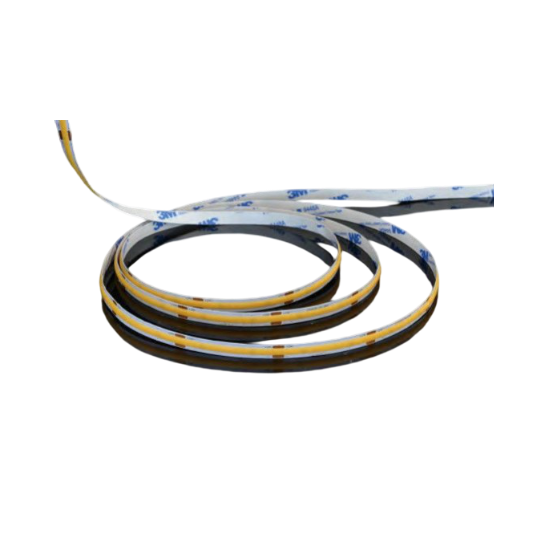

SLSA series linear lights are designed withsilicone one-piece extrusion, fearless of salt spray and humid environment; its effective length can be customized or cut according to the actual use, and the front side can be bent to meet the diversified lighting needs.
Material Copper
Dimension 8 × 1.9 mm
Led Driver Separate
Degree Of Protection IP20
Ta -25℃ ~ +55℃
Weight 0.019 kg/m
Light Source LED COB
Color Temperature 3000K / 4000K / 5700K / 6500K
Luminous Flux 900 lm/m
Luminous Efficacy 90 lm/W
CRI 80 / 90
Beam Angle 120°
Rated Voltage 24VDC
Rated Power 10W
Dimming Option Non-Dim / Triac / 0-10V / 1-10V / DALI
Bead Density 120 / 140 / 168 / 238 / 560 p/m
Max.Shipment Length 10m
Cut Length 2.5 / 5 cm
