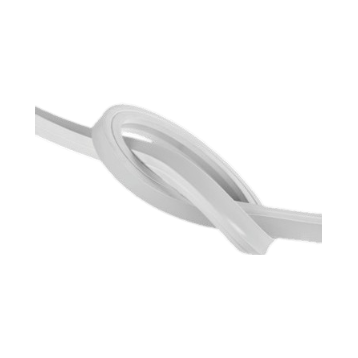

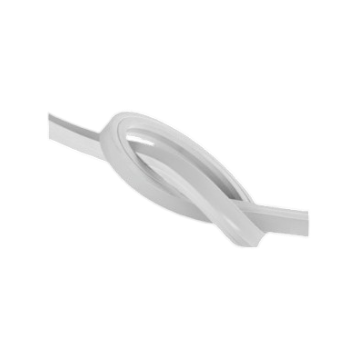

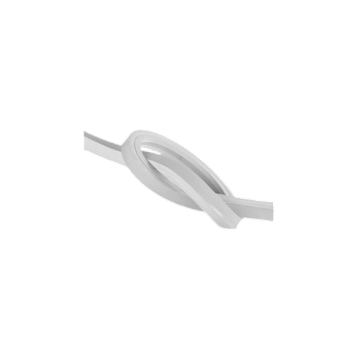

SLSA series linear lights are designed withsilicone one-piece extrusion, fearless of saltspray and humid environment; its effective length can be customized or cut according to the actual use, and the front side can be bent to meet the diversified lighting needs.
Material Silicone
Dimension 10 × 10 mm
Led Driver Separate
Degree Of Protection IP67
Ta -25℃ ~ +55℃
Weight 0.09 kg/m
Light Source LED SMD
Color Temperature 3000K / 4000K / 5700K
Luminous Flux 400 lm/m
Luminous Efficacy 50 lm/W
CRI 80 / 90
Beam Angle 120°
Rated Voltage 24VDC
Rated Power 8W
Dimming Option Non-Dim / Triac / 0-10V / 1-10V / DALI
Bead Density 120 / 140 / 168 p/m
Max.Shipment Length 10m
Cut Length 6.25 / 5 cm
Material Silicone
Dimension 12× 12 mm
Led Driver Separate
Degree Of Protection IP67
Ta -25℃ ~ +55℃
Weight 0.11 kg/m
Light Source LED SMD
Color Temperature 3000K / 4000K / 5700K
Luminous Flux 500 lm/m
Luminous Efficacy 50 lm/W
CRI 80 / 90
Beam Angle 120°
Rated Voltage 24VDC
Rated Power 10W
Dimming Option Non-Dim / Triac / 0-10V / 1-10V / DALI
Bead Density 120 / 140 / 168 p/m
Max.Shipment Length 10m
Cut Length 6.25 / 5 cm
Material Silicone
Dimension 16 × 16 mm
Led Driver Separate
Degree Of Protection IP67
Ta -25℃ ~ +55℃
Weight 0.19 kg/m
Light Source LED SMD
Color Temperature 3000K / 4000K / 5700K
Luminous Flux 750 lm/m
Luminous Efficacy 50 lm/W
CRI 80 / 90
Beam Angle 120°
Rated Voltage 24VDC
Rated Power 15W
Dimming Option Non-Dim / Triac / 0-10V / 1-10V / DALI
Bead Density 120 / 140 / 168 p/m
Max.Shipment Length 10m
Cut Length 6.25 / 5 cm
Material Silicone
Dimension 20 × 20 mm
Led Driver Separate
Degree Of Protection IP67
Ta -25℃ ~ +55℃
Weight 0.28 kg/m
Light Source LED SMD
Color Temperature 3000K / 4000K / 5700K
Luminous Flux 800 lm/m
Luminous Efficacy 50 lm/W
CRI 80 / 90
Beam Angle 120°
Rated Voltage 24VDC
Rated Power 20W
Dimming Option Non-Dim / Triac / 0-10V / 1-10V / DALI
Bead Density 120 / 140 / 168 p/m
Max.Shipment Length 10m
Cut Length 6.25 / 5 cm
