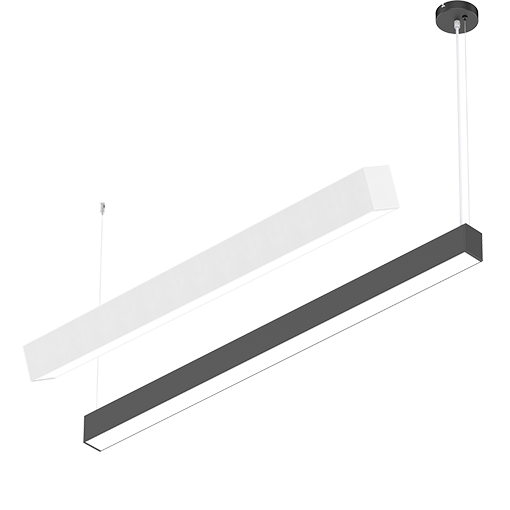

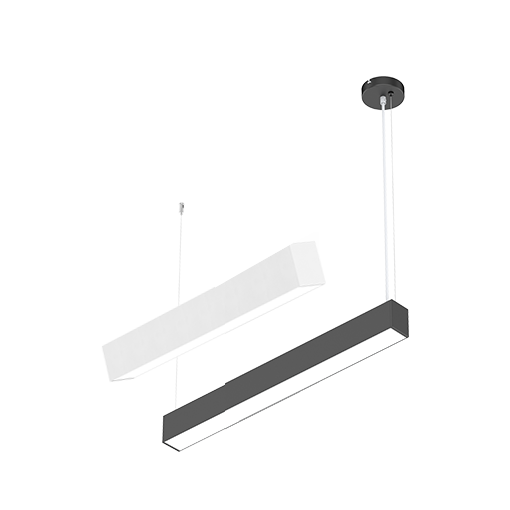

DB77 is a linear lamp that can be seamlessly splicing, with high lumen light source, uniform and bright light, no stroboscopic,high efficiency and energy saving, and can be customized according to space requirements.
Material Aluminum Alloy+Polycarbonate
Dimension 602 × 57 × 76 mm
Led Driver Built-In
Degree Of Protection IP20
Ta -20℃ ~ +45℃
Weight 2 kg
Light Source LED SMD
Color Temperature 3000K / 4000K / 5000K
Luminous Flux 1500 lm
Luminous Efficacy 85 lm/W
CRI 80
Beam Angle 110°
Rated Voltage AC220 - 240V
Rated Power 17W
Dimming Option Non-Dim / Triac / 0-10V / 1-10V / DALI
Material Aluminum Alloy+Polycarbonate
Dimension 1212 × 57 × 76 mm
Led Driver Built-In
Degree Of Protection IP20
Ta -20℃ ~ +45℃
Weight 3.2 kg
Light Source LED SMD
Color Temperature 3000K / 4000K / 5000K
Luminous Flux 3350 lm
Luminous Efficacy 85 lm/W
CRI 80
Beam Angle 110°
Rated Voltage AC220 - 240V
Rated Power 36W
Dimming Option Non-Dim / Triac / 0-10V / 1-10V / DALI
Material Aluminum Alloy+Polycarbonate
Dimension 1512 × 57 × 76 mm
Led Driver Built-In
Degree Of Protection IP20
Ta -20℃ ~ +45℃
Weight 4.2 kg
Light Source LED SMD
Color Temperature 3000K / 4000K / 5000K
Luminous Flux 4000 lm
Luminous Efficacy 85 lm/W
CRI 80
Beam Angle 110°
Rated Voltage AC220 - 240V
Rated Power 45W
Dimming Option Non-Dim / Triac / 0-10V / 1-10V / DALI
