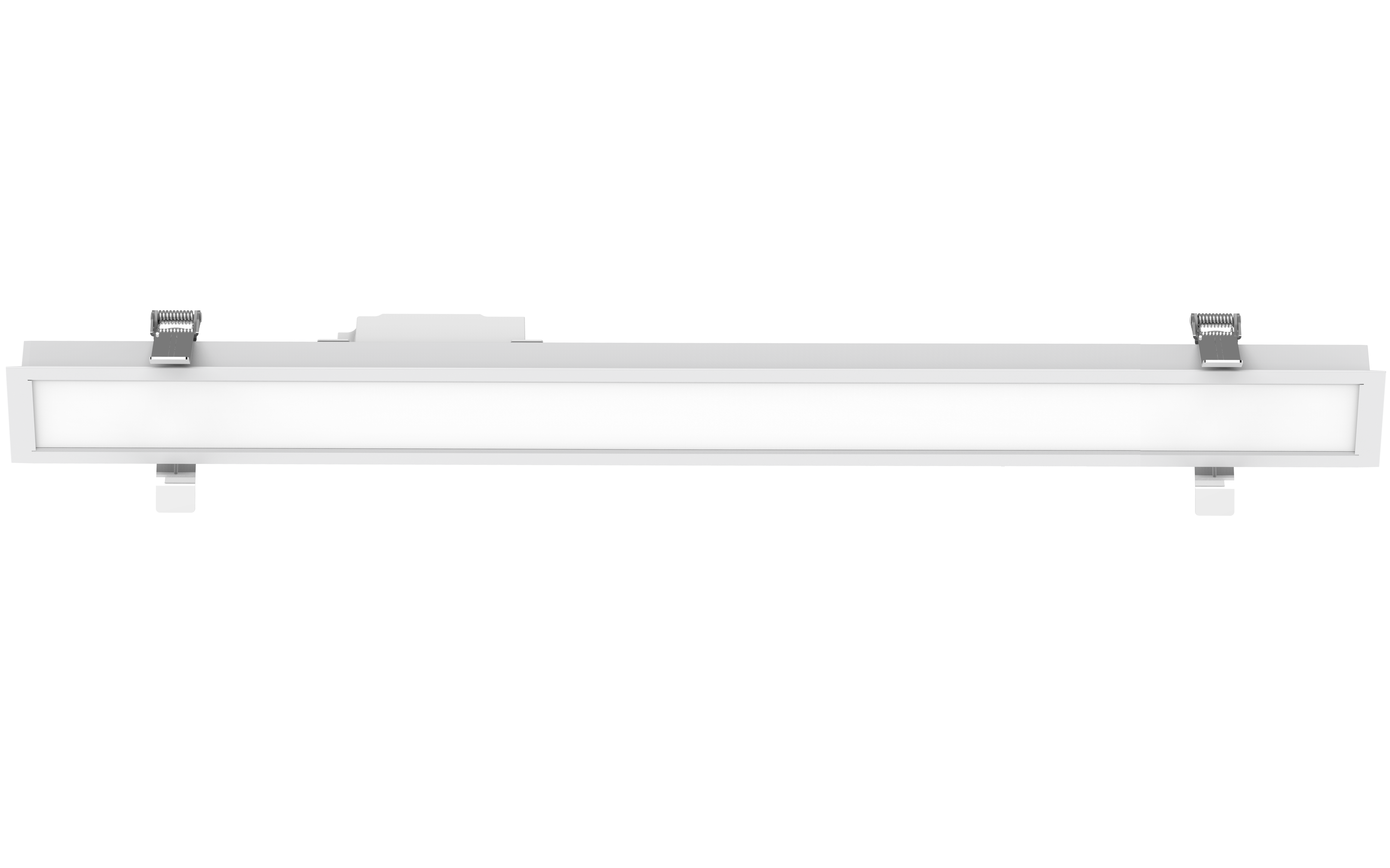

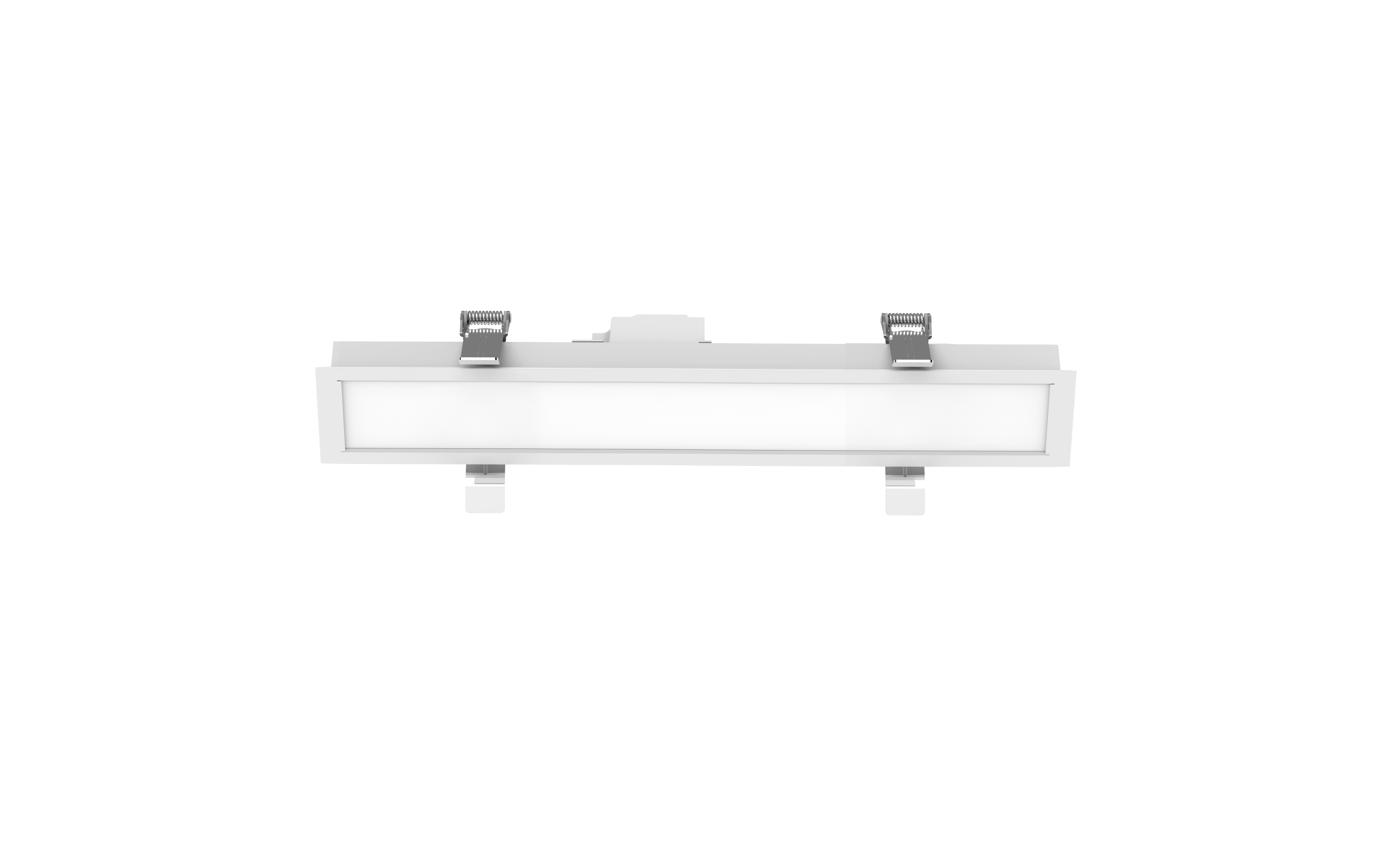

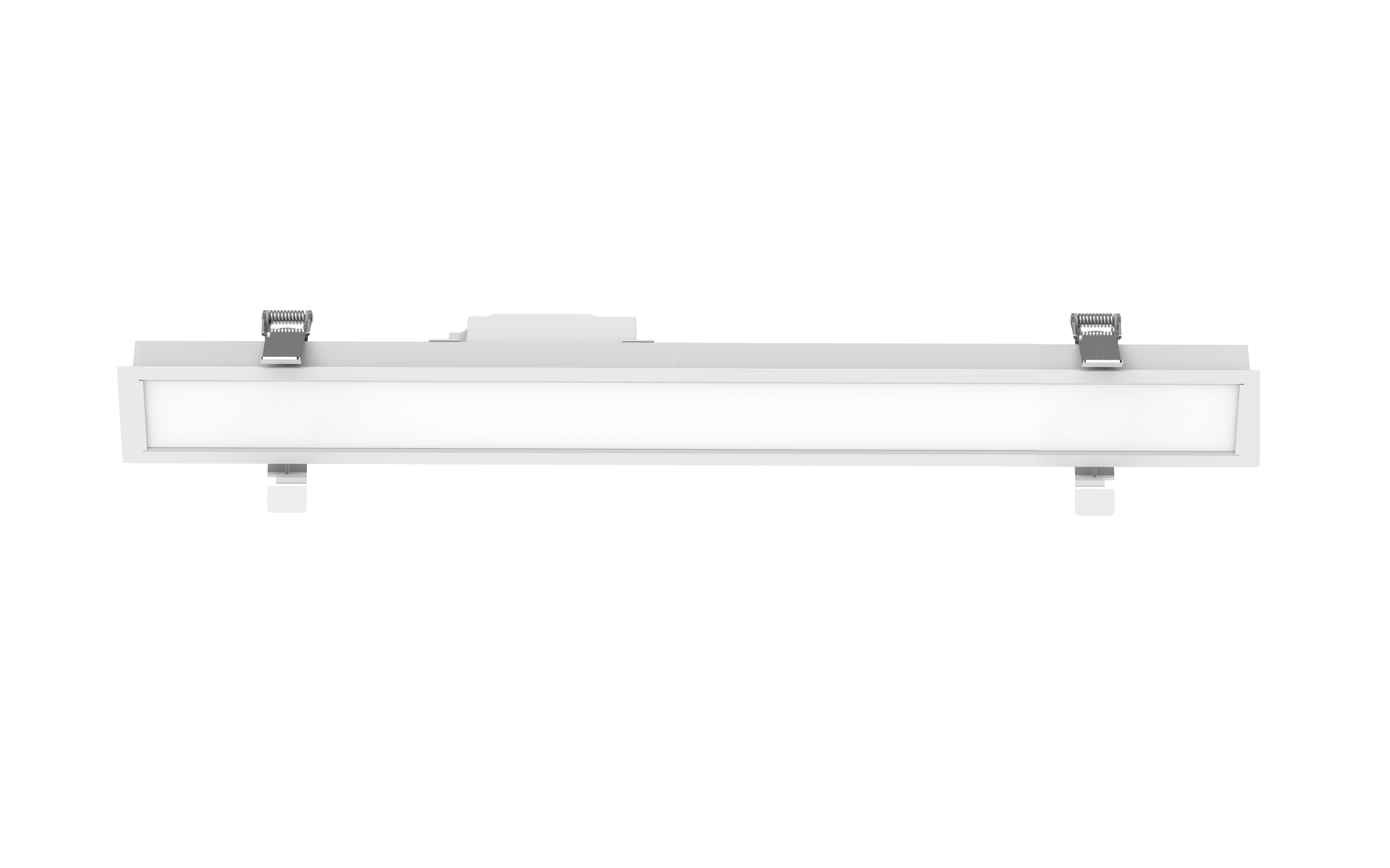

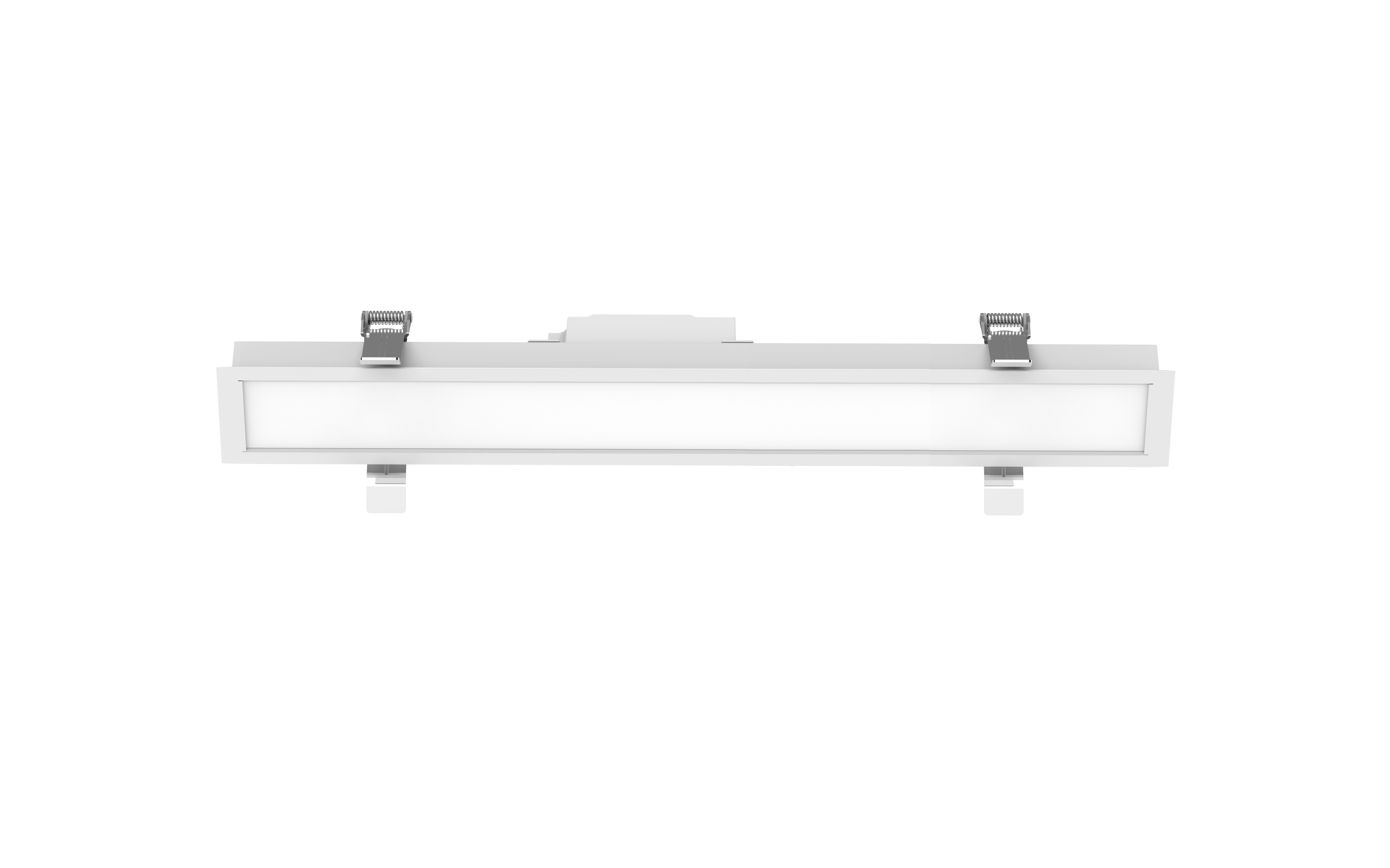

DB151 series LED lamp is an embedded linear lamp, the light is comfortable and uniform, can be customized according to the needs of different lengths, the use of special structural design, splicing shape of n type, t type, h type, to meet the needs of different spatial modeling.
Material Aluminum Alloy+Polycarbonate
Dimension 615 × 62 × 59 mm
Led Driver Separate
Degree Of Protection IP40
Ta -20℃ ~ +45℃
Weight 0.86 kg
Light Source LED SMD
Color Temperature 3000K / 4000K / 5000K
Luminous Flux 1500 lm
Luminous Efficacy 100 lm/W
CRI 80
Beam Angle 110°
Rated Voltage AC220 - 240V
Rated Power 15W
Dimming Option Non-Dim / DALI
Material Aluminum Alloy+Polycarbonate
Dimension 1208 × 62 × 59 mm
Led Driver Separate
Degree Of Protection IP40
Ta -20℃ ~ +45℃
Weight 1.52 kg
Light Source LED SMD
Color Temperature 3000K / 4000K / 5000K
Luminous Flux 3250 lm
Luminous Efficacy 100 lm/W
CRI 80
Beam Angle 110°
Rated Voltage AC220 - 240V
Rated Power 30W
Dimming Option Non-Dim / DALI
Material Aluminum Alloy+Polycarbonate
Dimension 1505 × 62 × 59 mm
Led Driver Separate
Degree Of Protection IP40
Ta -20℃ ~ +45℃
Weight 1.86 kg
Light Source LED SMD
Color Temperature 3000K / 4000K / 5000K
Luminous Flux 4000 lm
Luminous Efficacy 100 lm/W
CRI 80
Beam Angle 110°
Rated Voltage AC220 - 240V
Rated Power 37W
Dimming Option Non-Dim / DALI
Material Aluminum Alloy+Polycarbonate
Dimension 1802 × 62 × 59 mm
Led Driver Separate
Degree Of Protection IP40
Ta -20℃ ~ +45℃
Weight 2.22 kg
Light Source LED SMD
Light Source 3000K / 4000K / 5000K
Luminous Flux 4750 lm
Luminous Efficacy 100 lm/W
CRI 80
Beam Angle 110°
Rated Voltage AC220 - 240V
Rated Power 45W
Dimming Option Non-Dim / DALI
Material Aluminum Alloy+Polycarbonate
Dimension 2395 × 62 × 59 mm
Led Driver Separate
Degree Of Protection IP40
Ta -20℃ ~ +45℃
Weight 2.83 kg
Light Source LED SMD
Color Temperature 3000K / 4000K / 5000K
Luminous Flux 6300 lm
Luminous Efficacy 100 lm/W
CRI 80
Beam Angle 110°
Rated Voltage AC220 - 240V
Rated Power 60W
Dimming Option Non-Dim / DALI
