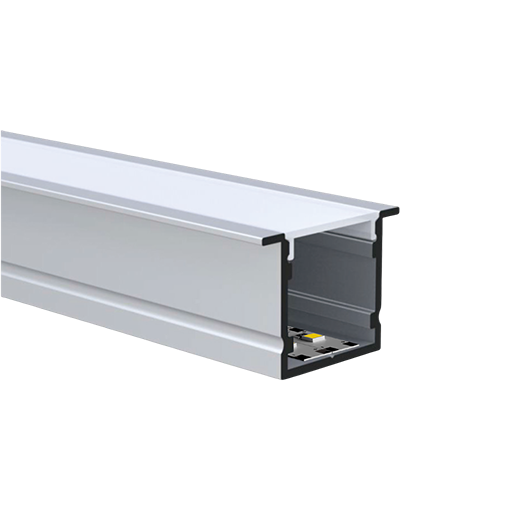

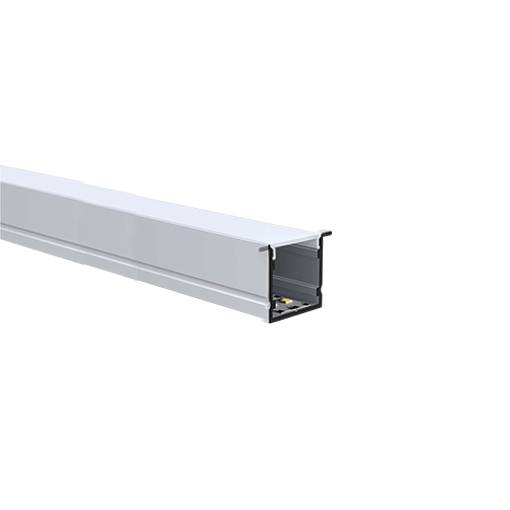

PLSB series linear light adopts aluminumalloy housing with f lap s tr uc ture andsupports recessed installation, creating a simple and comfortable lighting effect.
Material Aluminum Alloy+Polycarbonate
Led Driver Separate
Degree Of Protection IP44
Ta -25℃ ~ +55℃
Dimension 10 × 10 mm
Weight 0.09 kg/m
Rated Voltage 24VDC
Rated Power 8W
Dimming Option Non-Dim / Triac / 0-10V / 1-10V / DALI
Light Source LED SMD
Color Temperature 3000K / 4000K / 5700K
Luminous Flux 640 lm/m
Luminous Efficacy 80 lm/W
CRI 80 / 90
Beam Angle 120°
Bead Density 120 / 140 / 168 p/m
Max.Shipment Length 3m
Material Aluminum Alloy+Polycarbonate
Led Driver Separate
Degree Of Protection IP44
Ta -25℃ ~ +55℃
Dimension 20 × 20 mm
Weight 0.25 kg/m
Rated Voltage 24VDC
Rated Power 10W
Dimming Option Non-Dim / Triac / 0-10V / 1-10V / DALI
Light Source LED SMD
Color Temperature 3000K / 4000K / 5700K
Luminous Flux 800 lm/m
Luminous Efficacy 80 lm/W
CRI 80 / 90
Beam Angle 120°
Bead Density 120 / 140 / 168 p/m
Max.Shipment Length 3m
Material Aluminum Alloy+Polycarbonate
Led Driver Separate
Degree Of Protection IP44
Ta -25℃ ~ +55℃
Dimension 20 × 20 mm
Weight 0.26 kg/m
Rated Voltage 24VDC
Rated Power 15W
Dimming Option Non-Dim / Triac / 0-10V / 1-10V / DALI
Light Source LED SMD
Color Temperature 3000K / 4000K / 5700K
Luminous Flux 1200 m/m
Luminous Efficacy 80 lm/W
CRI 80 / 90
Beam Angle 120°
Bead Density 120 / 140 / 168 p/m
Max.Shipment Length 3m
Material Aluminum Alloy+Polycarbonate
Led Driver Separate
Degree Of Protection IP44
Ta -25℃ ~ +55℃
Dimension 20 × 20 mm
Weight 0.27 kg/m
Rated Voltage 24VDC
Rated Power 20W
Dimming Option Non-Dim / Triac / 0-10V / 1-10V / DALI
Light Source LED SMD
Color Temperature 3000K / 4000K / 5700K
Luminous Flux 1600 lm/m
Luminous Efficacy 80 lm/W
CRI 80 / 90
Beam Angle 120°
Bead Density 120 / 140 / 168 p/m
Max.Shipment Length 3m
