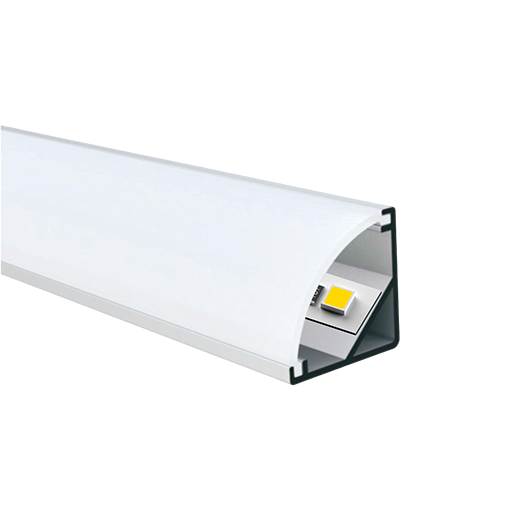

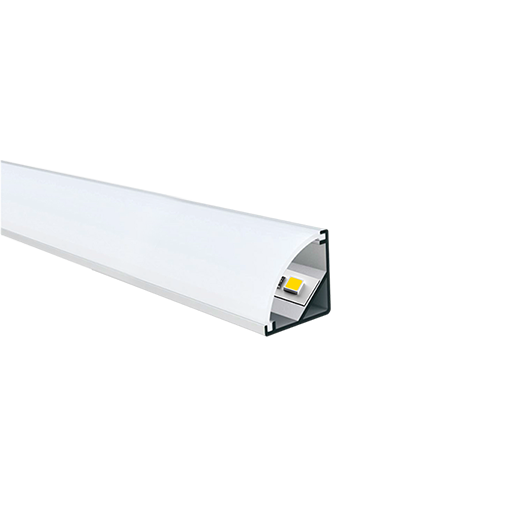

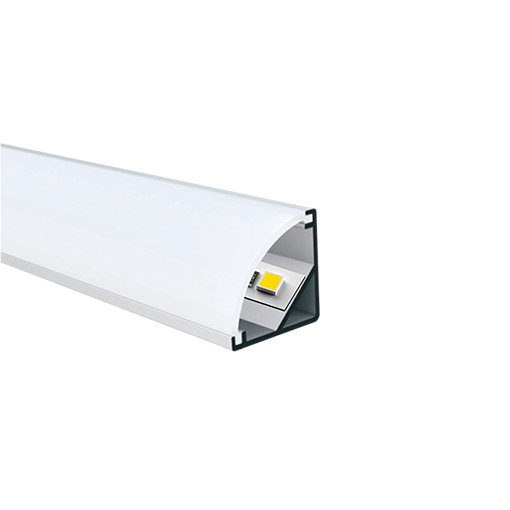

The PLSC Series Linear Lamps are designed with a combination of cur ved and rightangled edges to fit perfectly into corner areas and create a distinctive sense of light.
Material Aluminum Alloy+Polycarbonate
Dimension 10 × 10 mm
Led Driver Separate
Degree Of Protection IP44
Ta -25℃ ~ +55℃
Weight 0.09 kg/m
Light Source LED SMD
Color Temperature 3000K / 4000K / 5700K
Luminous Flux 700 lm/m
Luminous Efficacy 80 lm/W
CRI 80 / 90
Beam Angle 120°
Rated Voltage 24VDC
Rated Power 8W
Dimming Option Non-Dim / Triac / 0-10V / 1-10V / DALI
Bead Density 120 / 140 / 168 p/m
Max.Shipment Length 3m
Material Aluminum Alloy+Polycarbonate
Dimension 12 × 12 mm
Led Driver Separate
Degree Of Protection IP44
Ta -25℃ ~ +55℃
Weight 0.12 kg/m
Light Source LED SMD
Color Temperature 3000K / 4000K / 5700K
Luminous Flux 700 lm/m
Luminous Efficacy 80 lm/W
CRI 80 / 90
Beam Angle 120°
Rated Voltage 24VDC
Rated Power 8W
Dimming Option Non-Dim / Triac / 0-10V / 1-10V / DALI
Bead Density 120 / 140 / 168 p/m
Max.Shipment Length 3m
Material Aluminum Alloy+Polycarbonate
Dimension 16 × 16 mm
Led Driver Separate
Degree Of Protection IP44
Ta -25℃ ~ +55℃
Weight 0.19 kg/m
Light Source LED SMD
Color Temperature 3000K / 4000K / 5700K
Luminous Flux 1050 lm/m
Luminous Efficacy 80 lm/W
CRI 80 / 90
Beam Angle 120°
Rated Voltage 24VDC
Rated Power 12W
Dimming Option Non-Dim / Triac / 0-10V / 1-10V / DALI
Bead Density 120 / 140 / 168 p/m
Max.Shipment Length 3m
Material Aluminum Alloy+Polycarbonate
Dimension 20 × 20 mm
Led Driver Separate
Degree Of Protection IP44
Ta -25℃ ~ +55℃
Weight 0.24 kg/m
Light Source LED SMD
Color Temperature 3000K / 4000K / 5700K
Luminous Flux 1350 lm/m
Luminous Efficacy 80 lm/W
CRI 80 / 90
Beam Angle 120°
Rated Voltage 24VDC
Rated Power 15W
Dimming Option Non-Dim / Triac / 0-10V / 1-10V / DALI
Bead Density 120 / 140 / 168 p/m
Max.Shipment Length 3m
