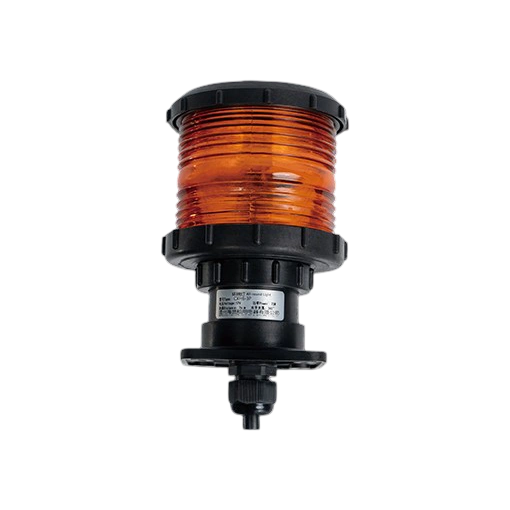

TH-3PL is a single deck electrical signaling light complying with Class III marine code. It is made of high-strength polycarbonate (PC) material and equipped with high-brightness LED light source, which is used for night-time navigational light signaling for all kinds of vessels under 12 meters in length to ensure the safety of navigation at night or under the environment of low visibility.
Material Polycarbonate+Polycarbonate
Dimension Φ96 × 147 mm
Weight 0.5 kg
Degree Of Protection IP56
Ta -30℃ ~ +50℃
Light Source LED
Service Life ≥30000h
Range Of Visibility 1 n.m
Horizontal Sector 112.5°
Colour Of Light Green
Rated Voltage DC12V DC24V
Rated Power 3.5W
Material Polycarbonate+Polycarbonate
Dimension Φ96 × 147 mm
Weight 0.5 kg
Degree Of Protection IP56
Ta -30℃ ~ +50℃
Light Source LED
Service Life ≥30000h
Range Of Visibility 1 n.m
Horizontal Sector 112.5°
Colour Of Light Red
Rated Voltage DC12V DC24V
Rated Power 3.5W
Material Polycarbonate+Polycarbonate
Dimension Φ96 × 147 mm
Weight 0.5 kg
Degree Of Protection IP56
Ta -30℃ ~ +50℃
Light Source LED
Service Life ≥30000h
Range Of Visibility 2 n.m
Horizontal Sector 225°
Colour Of Light White
Rated Voltage DC12V DC24V
Rated Power 3.5W
Material Polycarbonate+Polycarbonate
Dimension Φ96 × 147 mm
Weight 0.5 kg
Degree Of Protection IP56
Ta -30℃ ~ +50℃
Light Source LED
Service Life ≥30000h
Range Of Visibility 2 n.m
Horizontal Sector 135°
Colour Of Light White / Yellow
Rated Voltage DC12V DC24V
Rated Power 3.5W
Material Polycarbonate+Polycarbonate
Dimension Φ96 × 147 mm
Weight 0.5 kg
Degree Of Protection IP56
Ta -30℃ ~ +50℃
Light Source LED
Service Life ≥30000h
Range Of Visibility 2 n.m
Horizontal Sector 360°
Colour Of Light White
Rated Voltage DC12V DC24V
Rated Power 3.5W
Material Polycarbonate+Polycarbonate
Dimension Φ96 × 147 mm
Weight 0.5 kg
Degree Of Protection IP56
Ta -30℃ ~ +50℃
Light Source LED
Service Life ≥30000h
Range Of Visibility 2 n.m
Horizontal Sector 360°
Colour Of Light Green / White / Red / Yellow
Rated Voltage DC12V DC24V
Rated Power 3.5W
