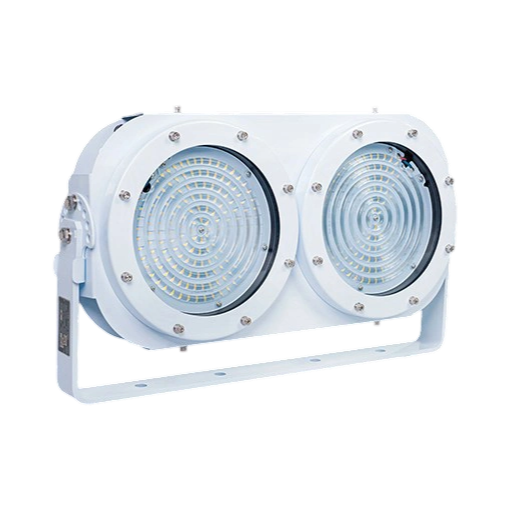

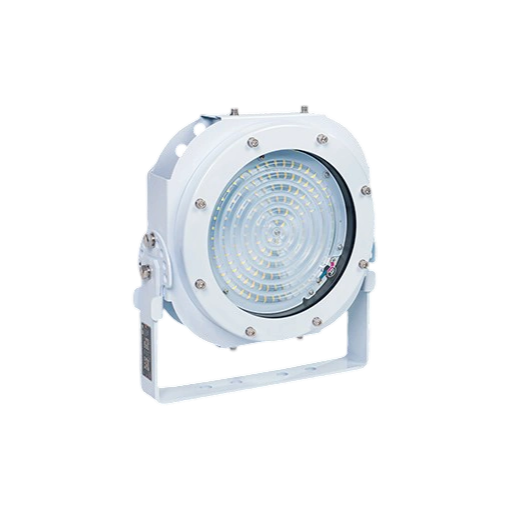

JL series floodlight is a high-performance LED floodlight, adopting high brightness LED light source and high efficiency optical system, which can provide uniform and high brightness lighting effect in various harsh environments to meet the demand of large-area lighting, and at the same time, it has the characteristics of high efficiency and energy saving, long life and high reliability. It is suitable for all kinds of ships, shipyards, harbor terminals, cargo yards, stadiums and other open-air places for projection lighting.
Material Stainless Steel+Tempered Glass
Dimension 339 × 366 × 169 mm
Weight 12 kg
Degree Of Protection IP56 / IP67
Ta -20℃ ~ +45℃
Light Source Led Modules
Color Temperature 5000K
Luminous Flux 12000lm
CRI 80
Service Life ≥50000h
Rated Voltage AC110V / AC220V
Rated Power 100W
Material Stainless Steel+Tempered Glass
Dimension 339 × 366 × 169 mm
Weight 12 kg
Degree Of Protection IP56 / IP67
Ta -20℃ ~ +45℃
Light Source Led Modules
Color Temperature 5000K
Luminous Flux 24000lm
CRI 80
Service Life ≥50000h
Rated Voltage AC110V / AC220V
Rated Power 200W
Material Stainless Steel+Tempered Glass
Dimension 626 × 366 × 169 mm
Weight 24 kg
Degree Of Protection IP56 / IP67
Ta -20℃ ~ +45℃
Light Source Led Modules
Color Temperature 5000K
Luminous Flux 36000lm
CRI 80
Service Life ≥50000h
Rated Voltage AC110V / AC220V
Rated Power 300W
Material Stainless Steel+Tempered Glass
Dimension 626 × 366 × 169 mm
Weight 24 kg
Degree Of Protection IP56 / IP67
Ta -20℃ ~ +45℃
Light Source Led Modules
Color Temperature 5000K
Luminous Flux 48000lm
CRI 80
Service Life ≥50000h
Rated Voltage AC110V / AC220V
Rated Power 400W
